Basic Info.
Lamp Body Material
Die Casting Aluminum + PC Lens + Tempered Glass
Power Range

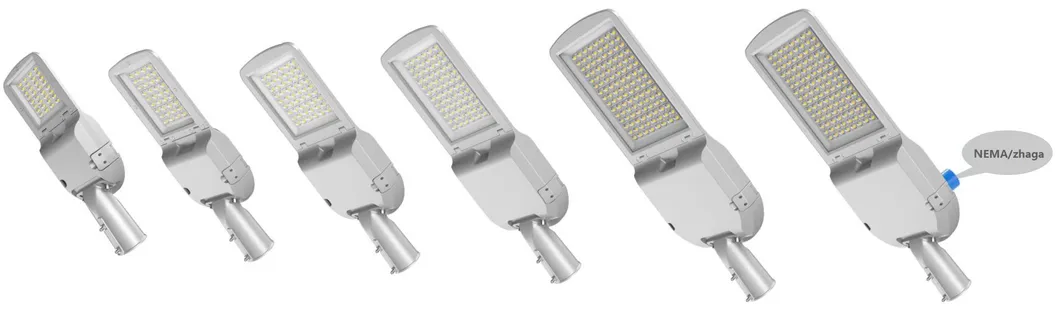

30W - 300W Options
Application
Highway, Garden, Street, Parking Lot, Road, Park
Certification
CE, EMC, LVD, RoHS
Input Voltage
100-277VAC 50/60Hz
LED Brand
SMD3030 / SMD5050
Smart Control
LoRaWAN / Zigbee / NB-IoT / NEMA Socket
Luminous Efficiency
180lm/W High Efficiency
Product Overview

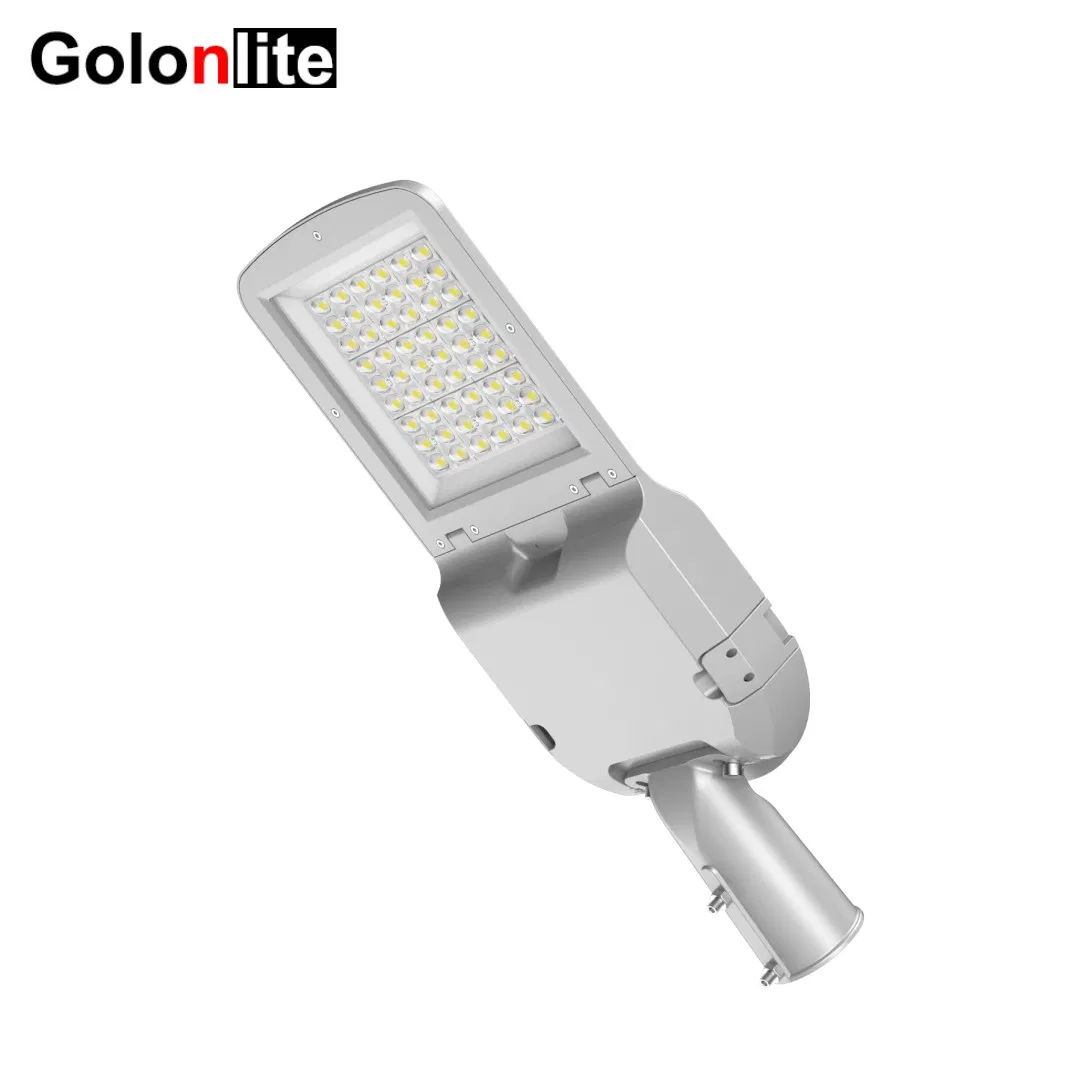

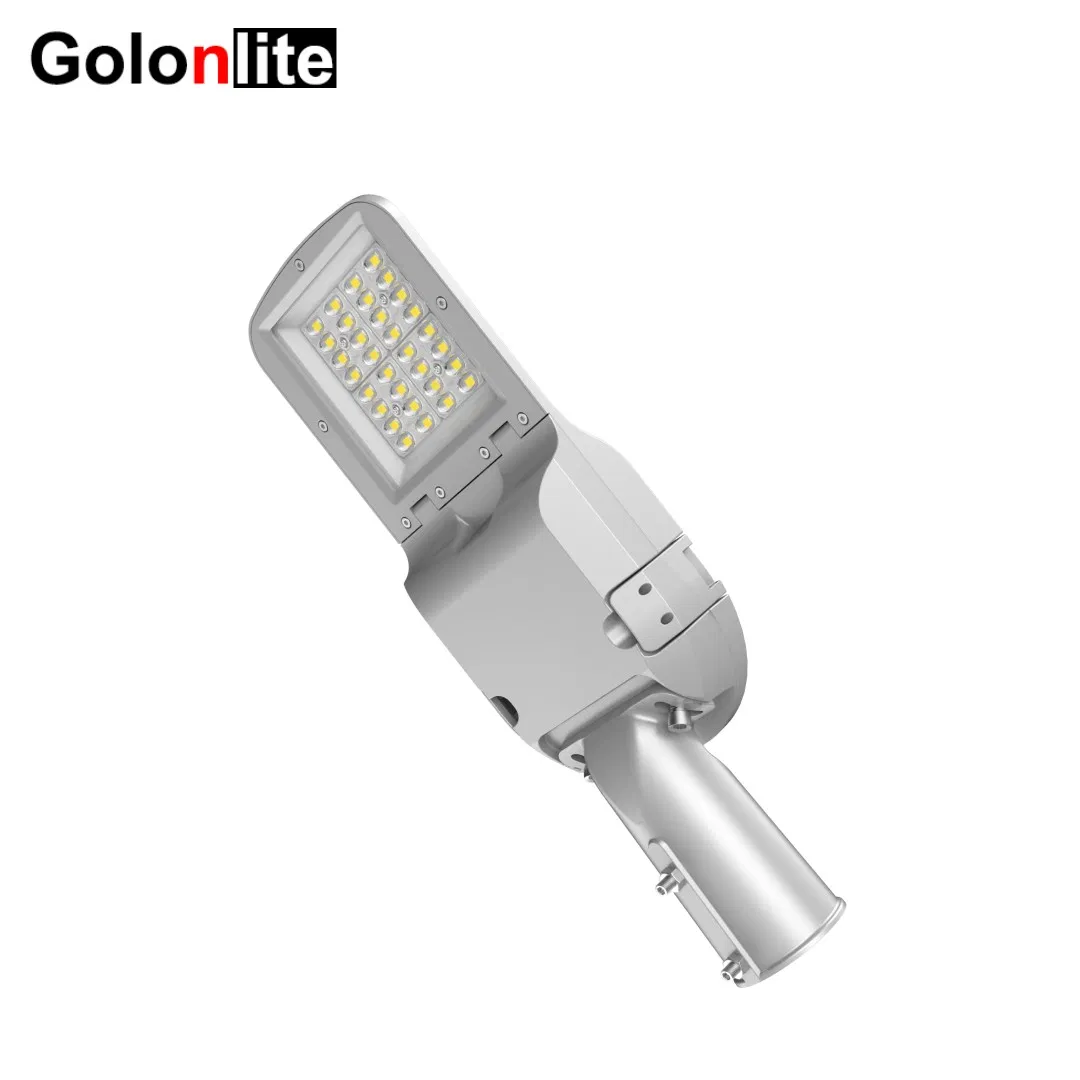

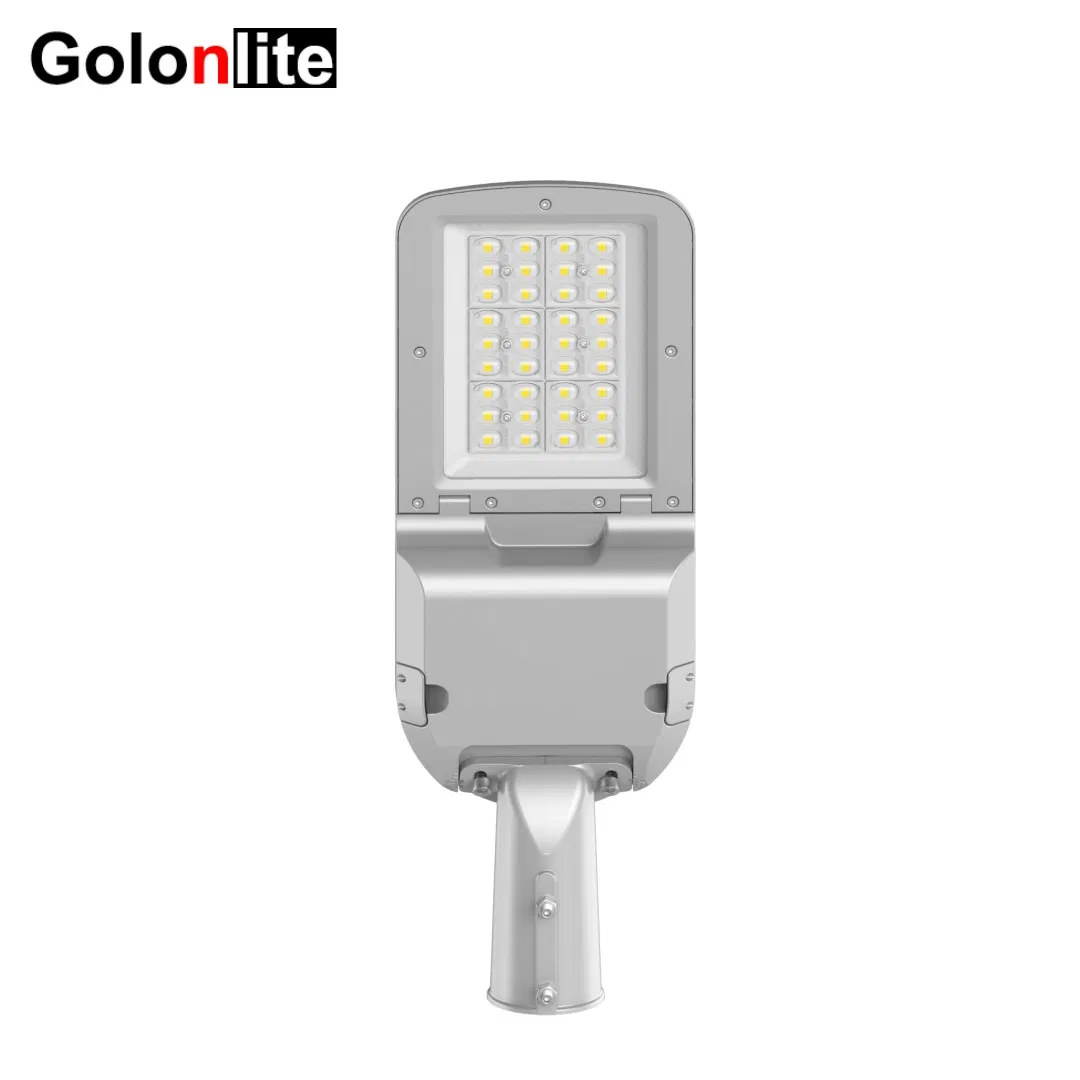

180Lm/W IP66 IK08 Photocell Post Top Parking Garden Pathway Highway Public Area Lighting
Super Bright Efficiency
Reaches up to 180Lm/W high lumens efficiency for maximum energy saving.
Durable Construction

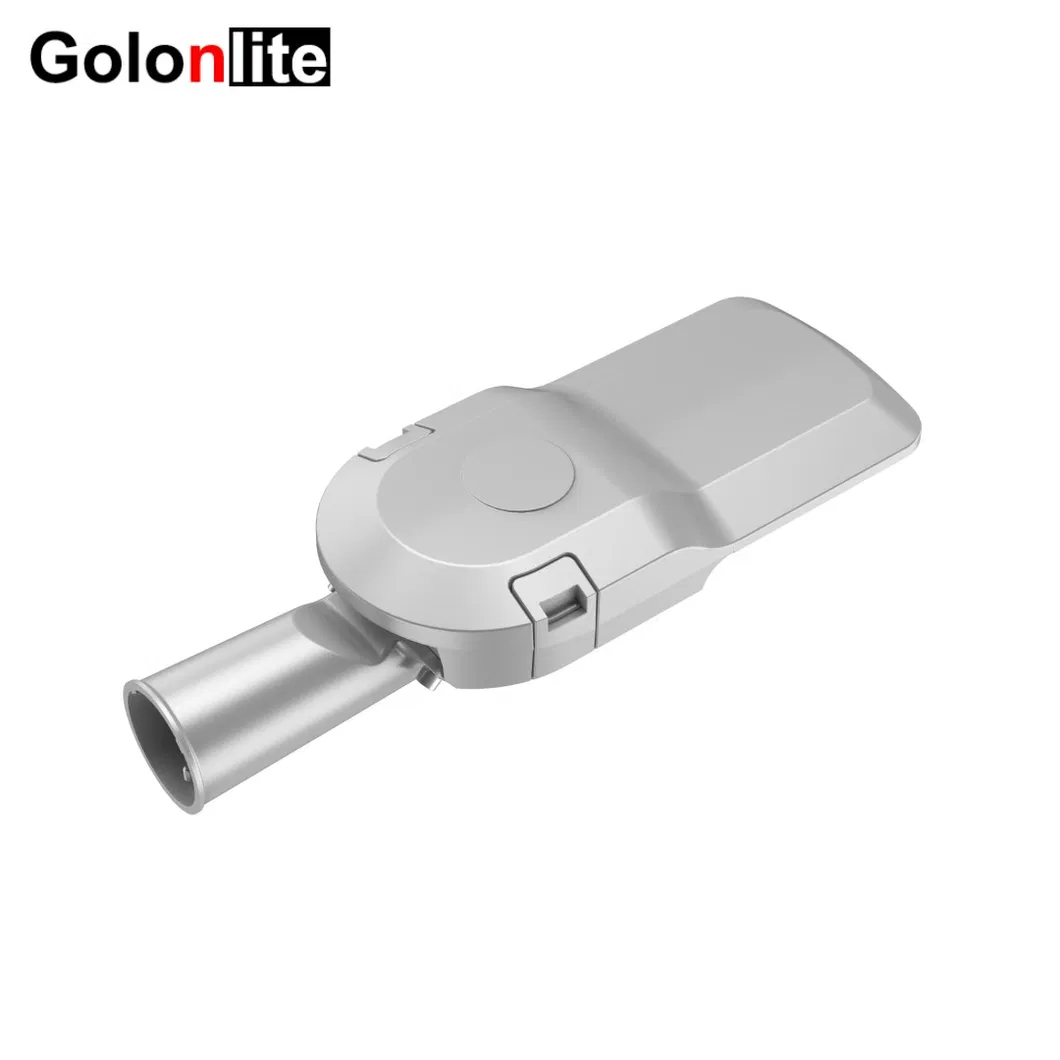

Die casting aluminum housing with optical PC lens and tempered glass.
IP66 Waterproof
Fully protected against dust and heavy rain, suitable for harsh outdoor environments.
Technical Specifications
| Luminous Efficiency: 140Lm/W - 170Lm/W (Up to 180) |
CCT: 1700K - 6500K Options |
Input Voltage: 100-277VAC, 347V, 480VAC |
| CRI: > Ra80 / 70 |
Beam Angle: T2M / T3M / T4M |

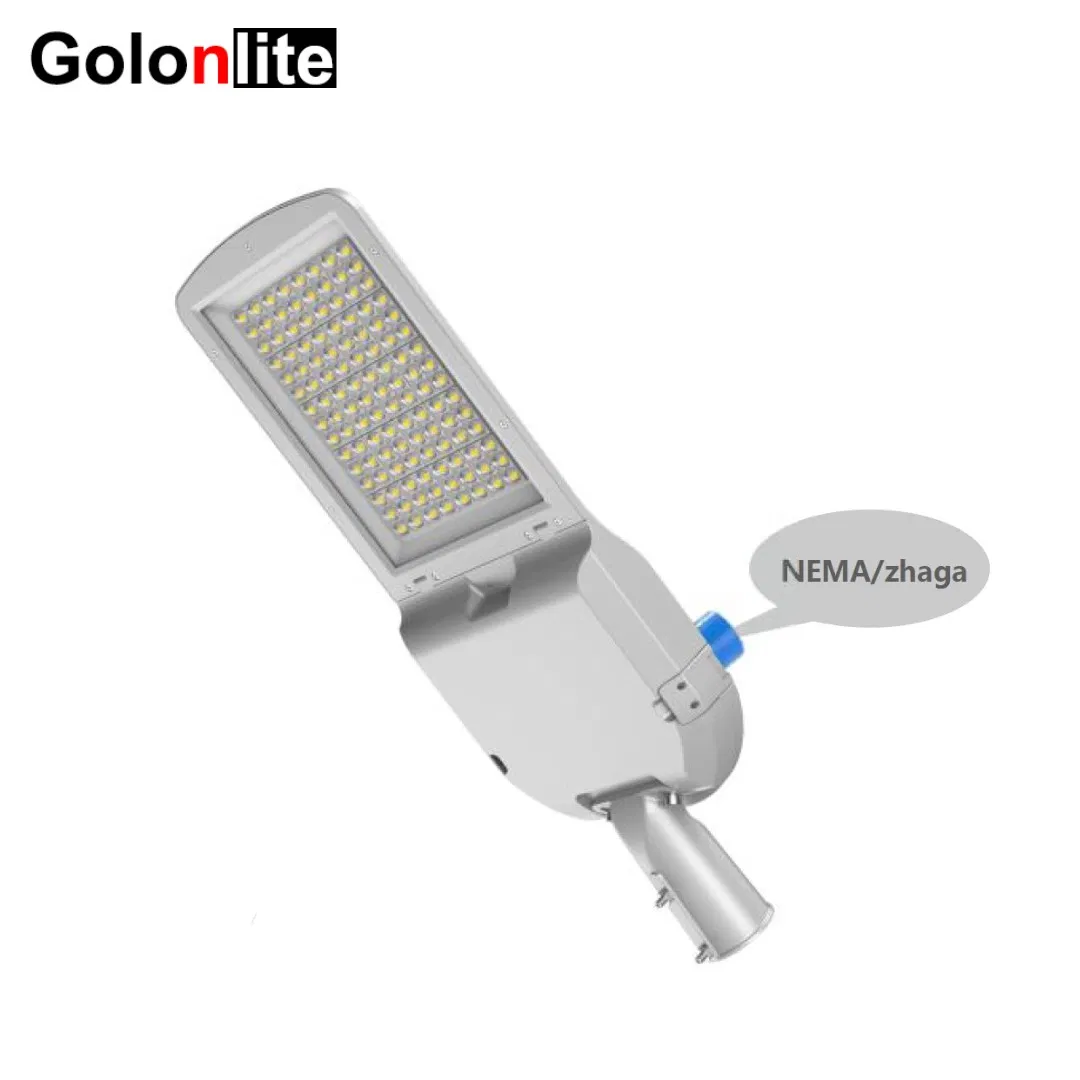

Smart Control: 3/5/7 pins NEMA / LoRaWan / Zigbee |
| Lifespan: > 50,000 Hours |
Protection: IP66 / IK08 / SPD 6-20KV |
Materials: Die casting Alum + PC Lens |

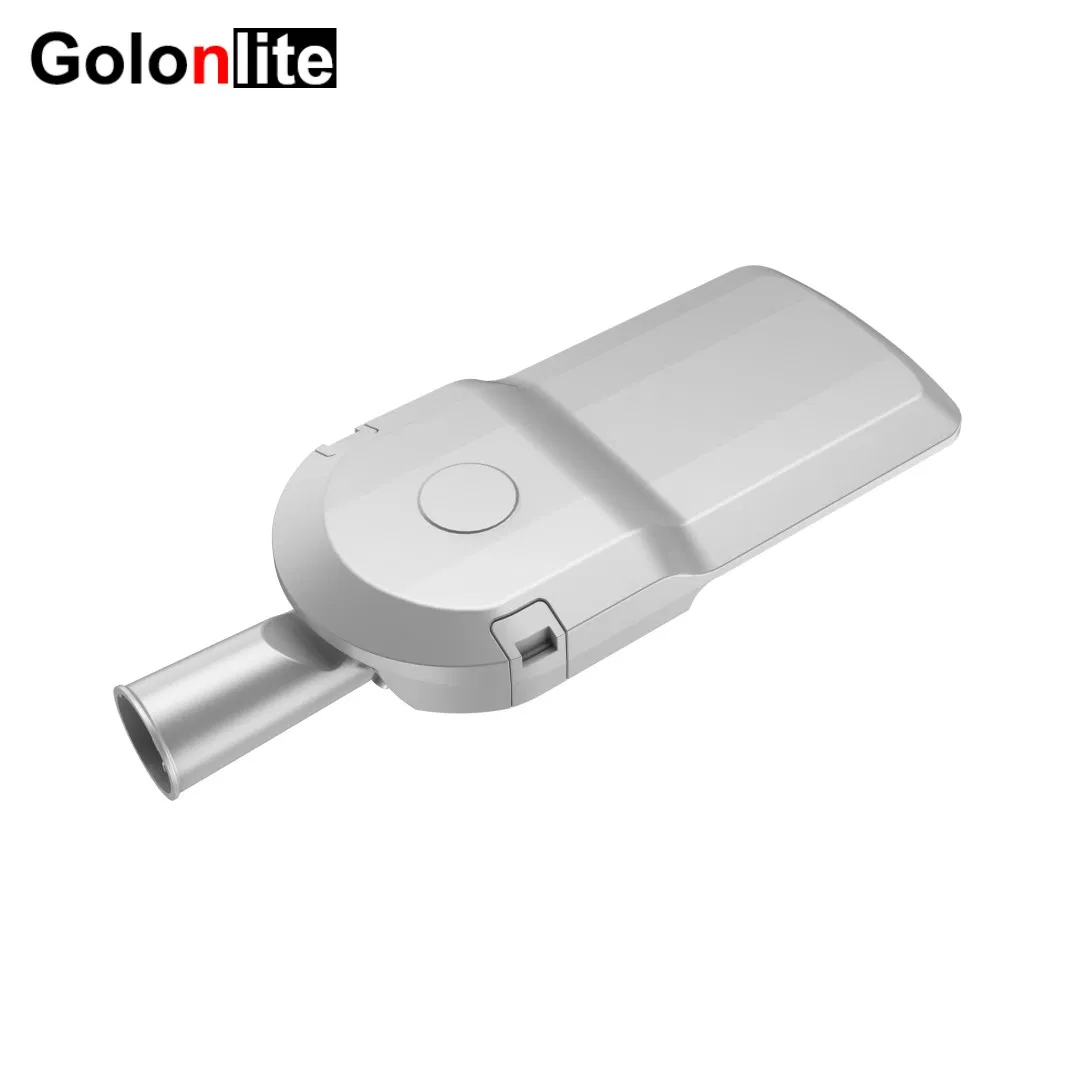

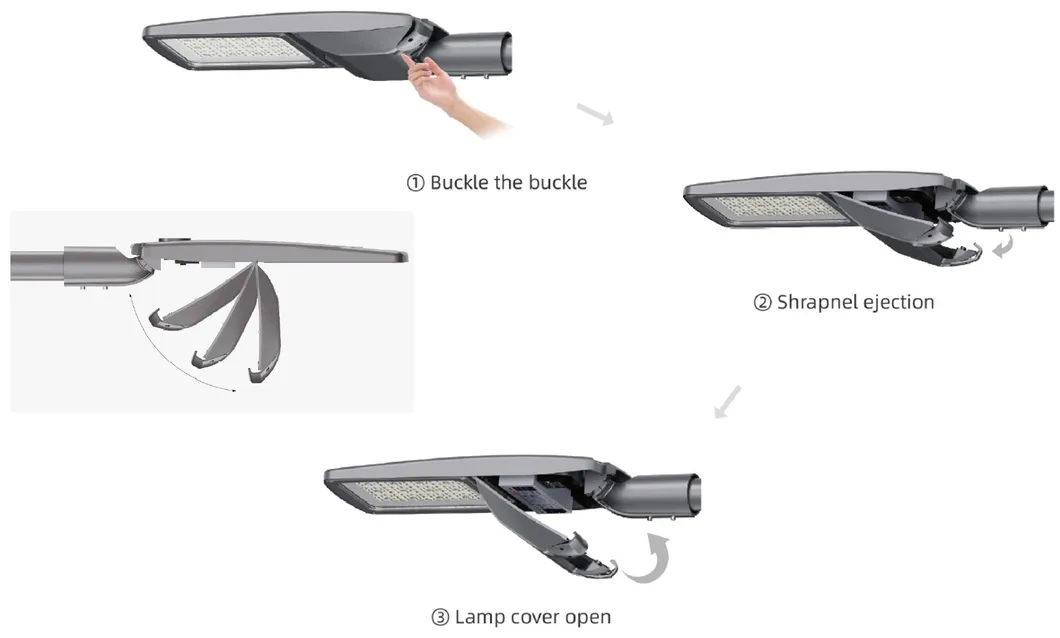

Tool-Free Opening Design for Easy Maintenance

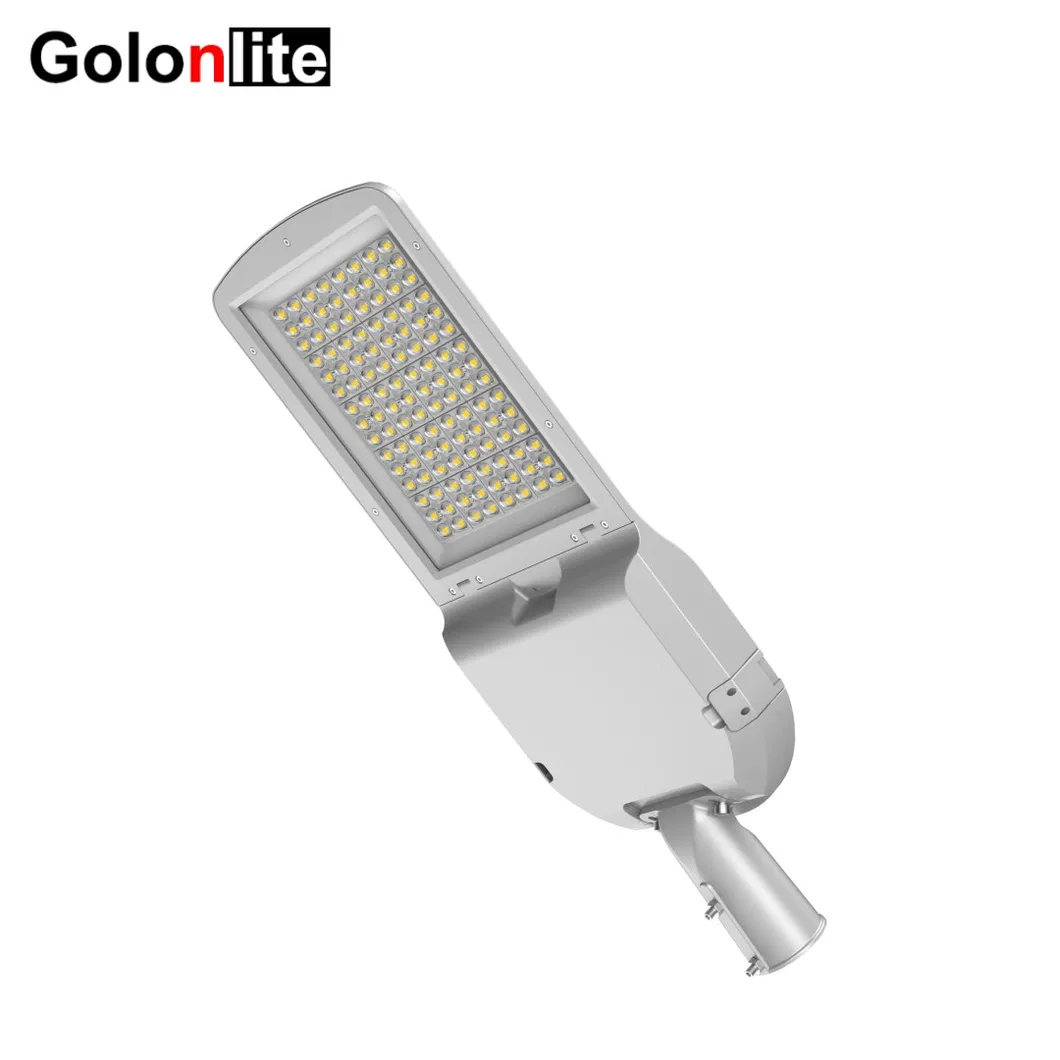

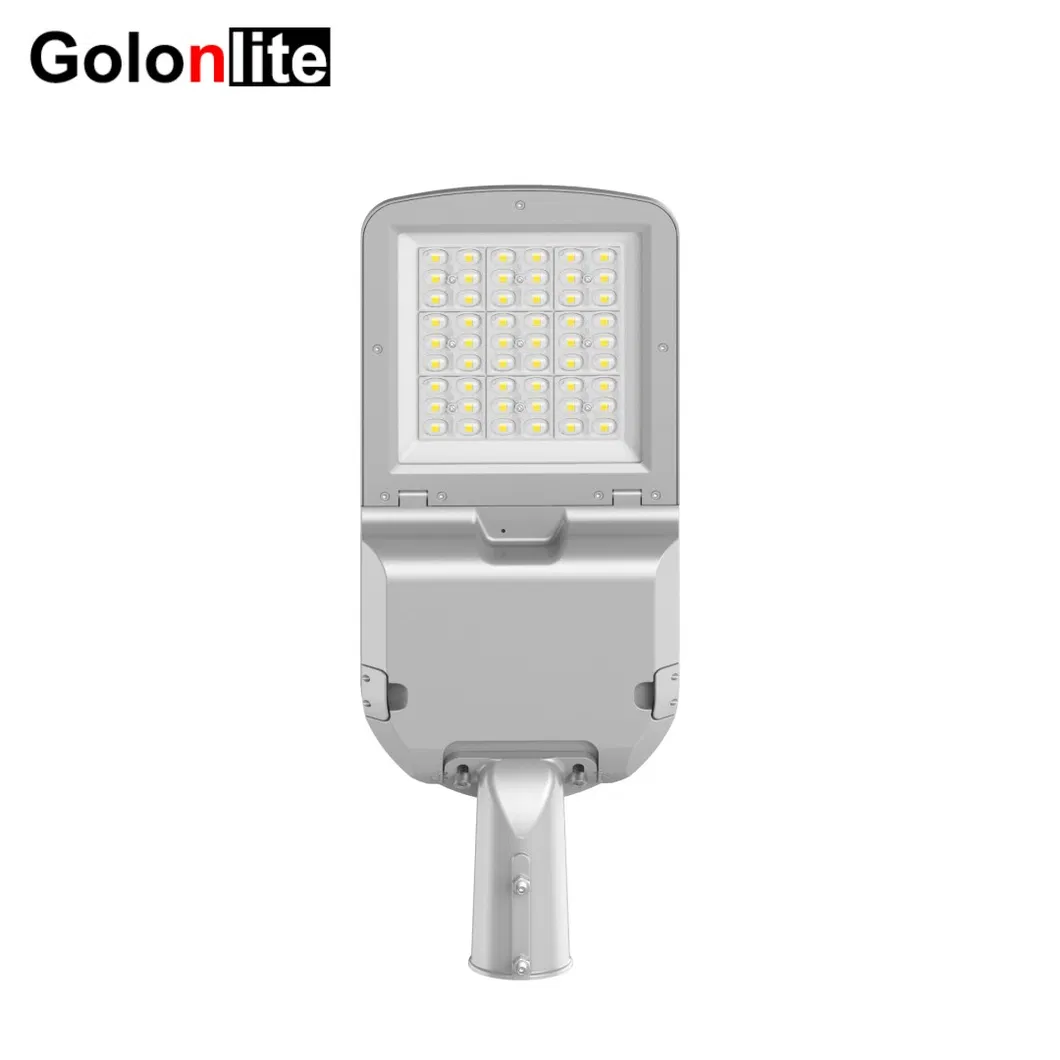

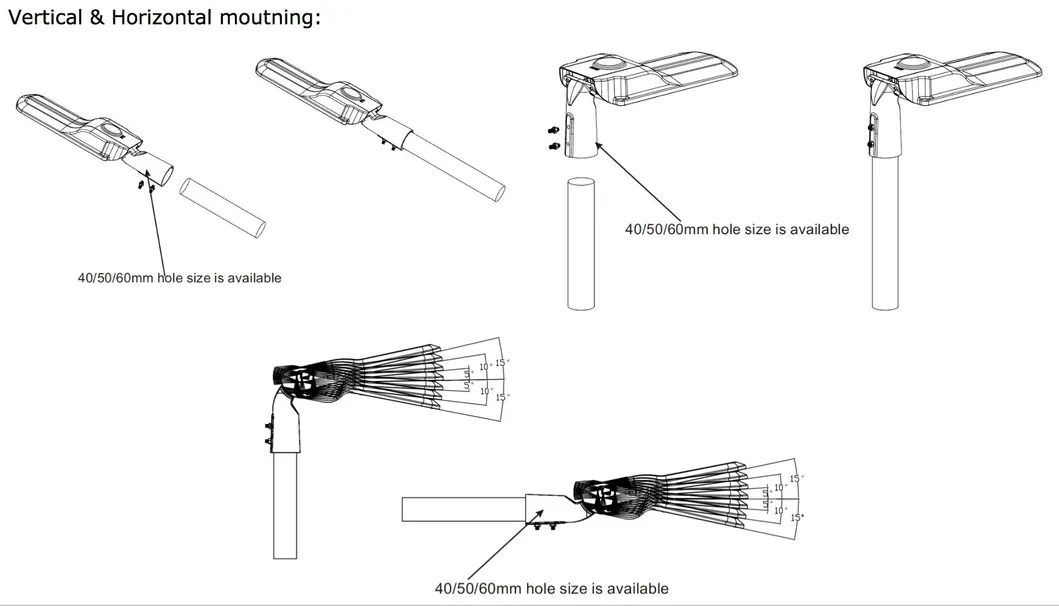

Installation & Structure

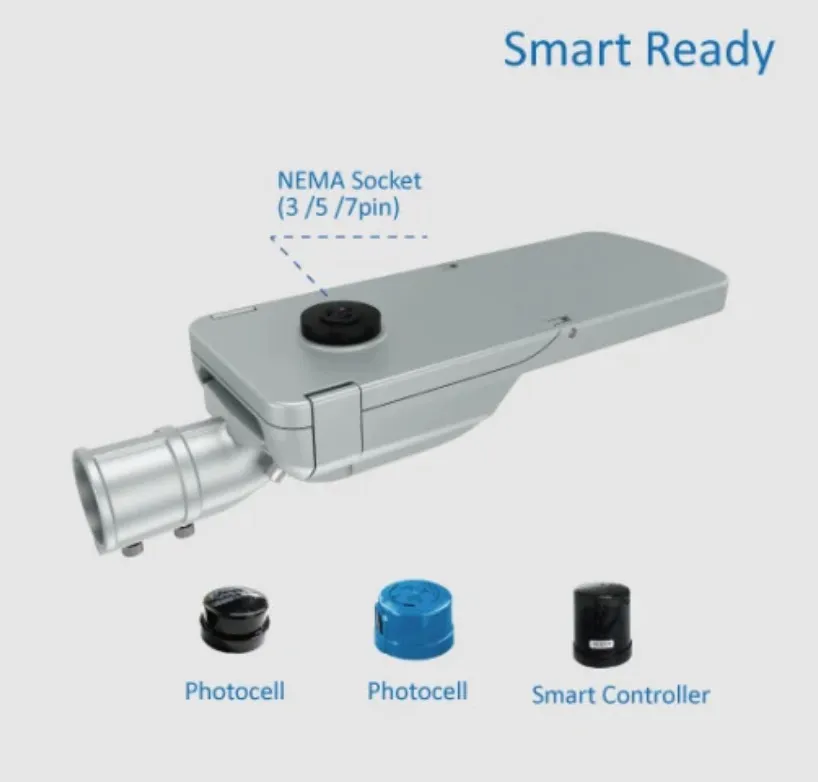

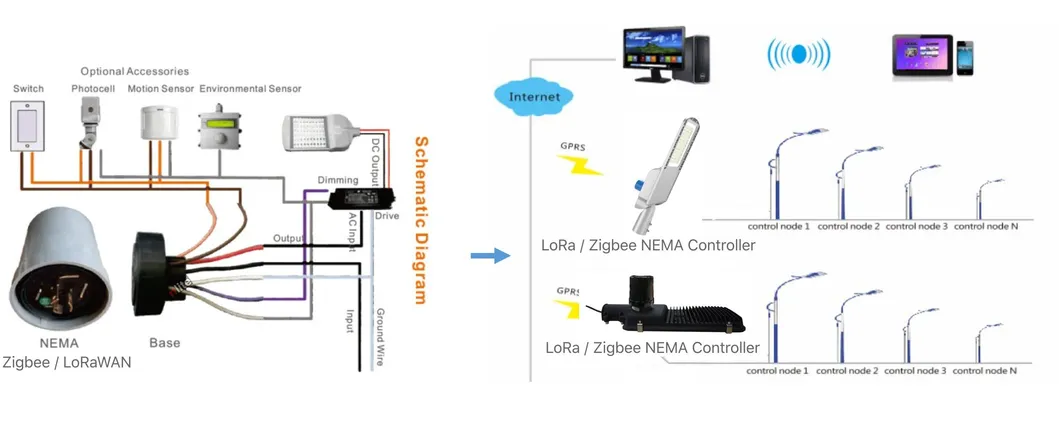

Smart Control Systems
What can the system do?
- • Remote switch on/off and dimming control.
- • Electricity reports for power consumption and saving.
- • Status reports and fault alarms.
- • Group controlling and interval status updates.

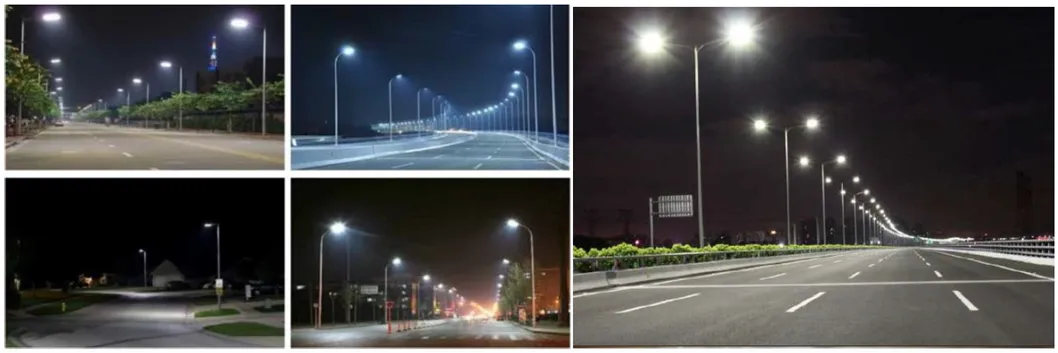

Applications
Frequently Asked Questions
What is the maximum luminous efficiency of these LED street lights?
These street lights reach an industry-leading efficiency of up to 180Lm/W, providing exceptional energy savings for public lighting projects.
Are the street lights compatible with smart city control systems?
Yes, we support multiple smart control options including LoRaWAN, Zigbee, NB-IoT, and 3/5/7-pin NEMA sockets for photocell sensors and remote management.
What is the protection rating for these fixtures?
The fixtures are IP66 waterproof and IK08 impact-resistant. They also feature Surge Protection Devices (SPD) available in 6KV, 10KV, and 20KV options.
Can I get a custom lighting simulation for my road project?
Yes, we provide free Dialux lighting simulations and studies to ensure the light distribution meets your specific road or area requirements.
What kind of maintenance design does the light have?
The street light features a tool-free opening design, allowing for easy access to internal components for maintenance or driver replacement.
What is the typical warranty period offered?
Depending on the project requirements and configuration, we offer 5, 7, or 10-year warranties to guarantee long-term performance.
