Basic Information
Material
Die-Cast Aluminum
Product Advantages

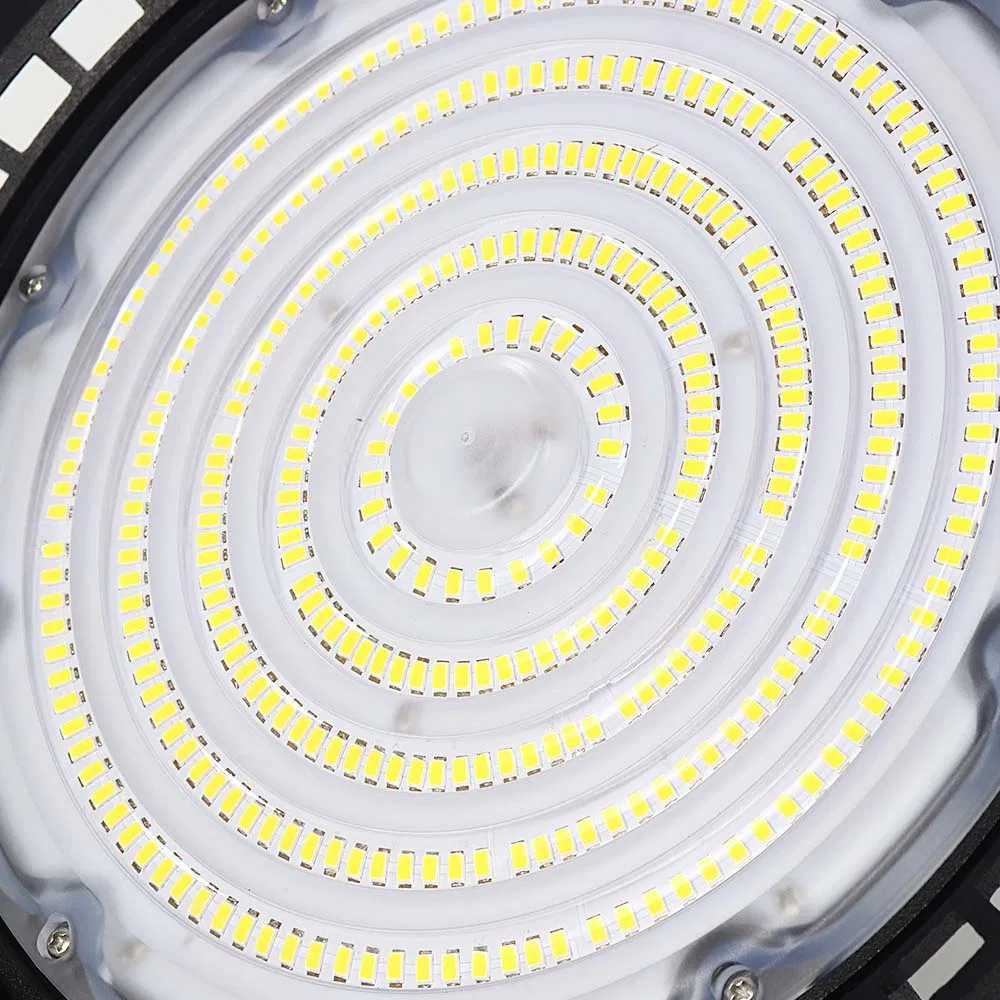

- High Efficiency: Lumiled / Osam SMD2835 LED, delivering 150-200LM/W.
- Superior Driver: CE UL driver, compatible with 100-277VAC/100-240VAC.
- Modern Design: Simple and elegant UFO shape, lighter and smaller, saving freight costs.
- Thermal Management: Wide aluminium plate + large diameter PCB for fast and even heat dissipation.

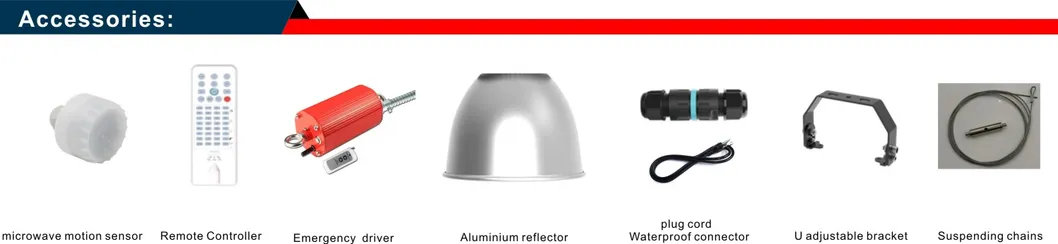

- Versatile Functions: Optional 1-10V dimmable, daylight sensor, motion sensor, and microwave sensor.

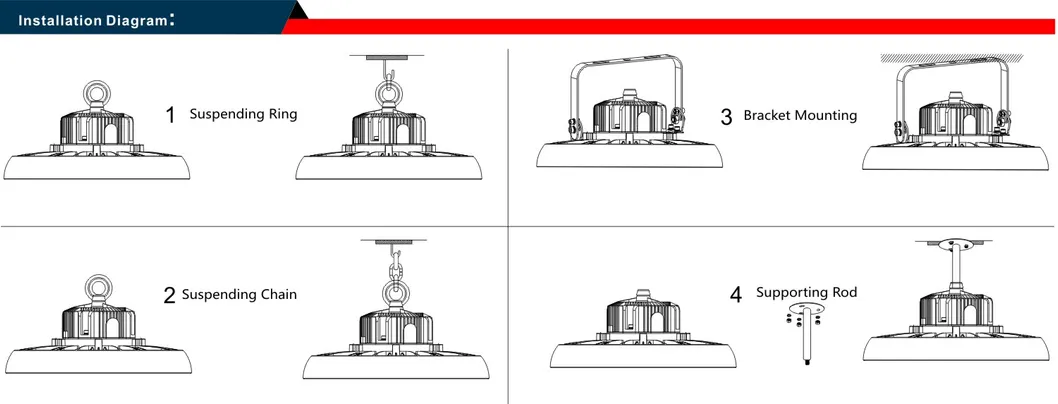

- Easy Installation: Supports suspending ring, chain, rod, hook, and 180° adjustable bracket.
- Certified Quality: SAA, CE, and RoHS certified for global markets.

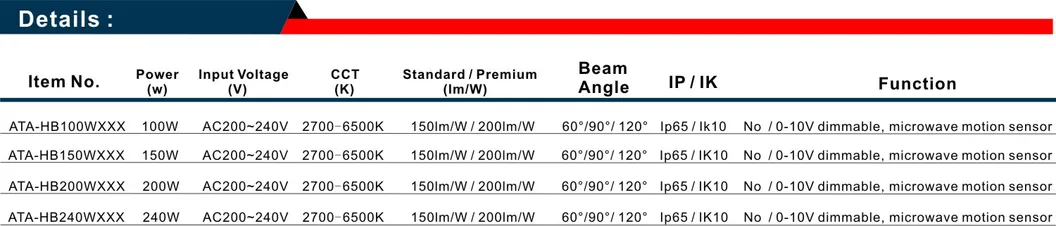

Technical Specifications
| Power |
50W |
100W |
150W |
200W |
240W |
| Input Voltage |
AC100-277V, 50-60Hz |
| Luminous Flux |
7500LM |
13500LM |
22500LM |
27000LM |
27000LM |
| CCT |
3000K, 4000K, 5000K, 6000K |
| LED Type |
Lumiled / Osam SMD2835 |
| CRI |
>80Ra |
| PF / Efficiency |
PF > 0.93 / Efficiency > 93% |
| Ingress Protection |
IP65 |

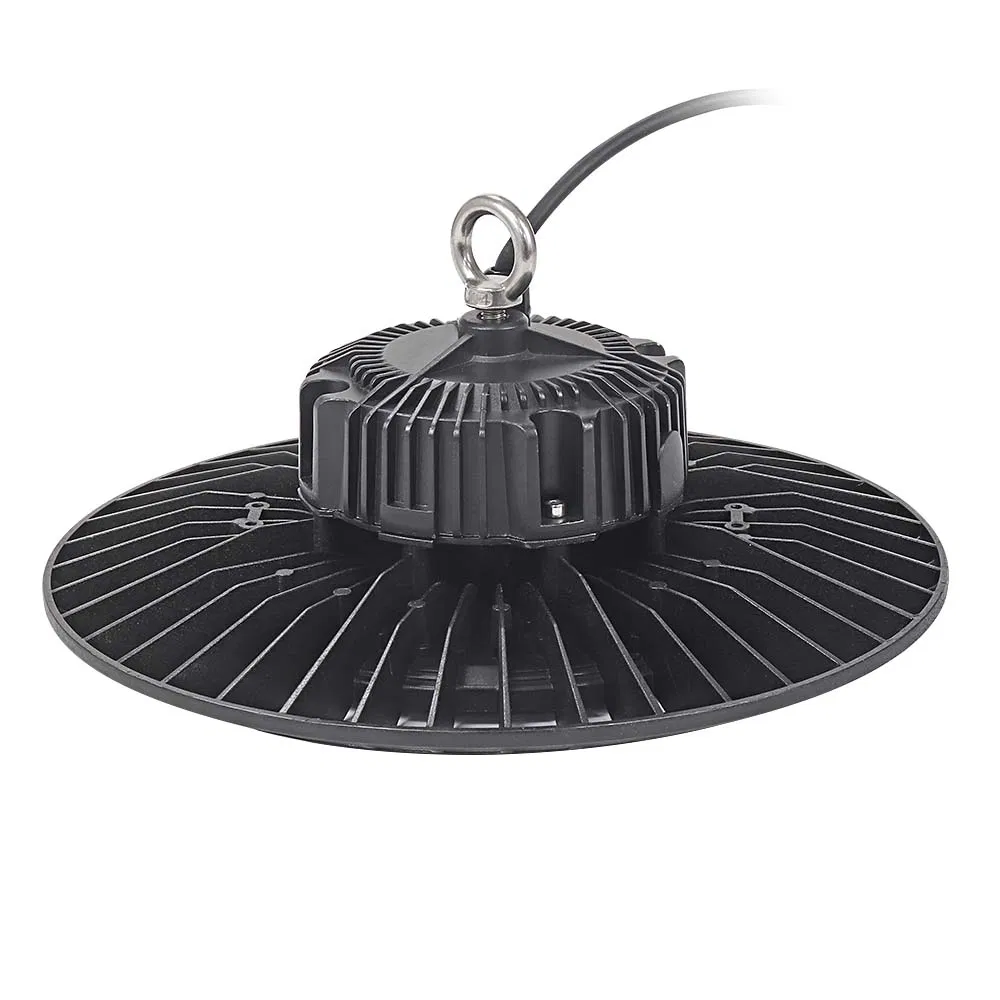

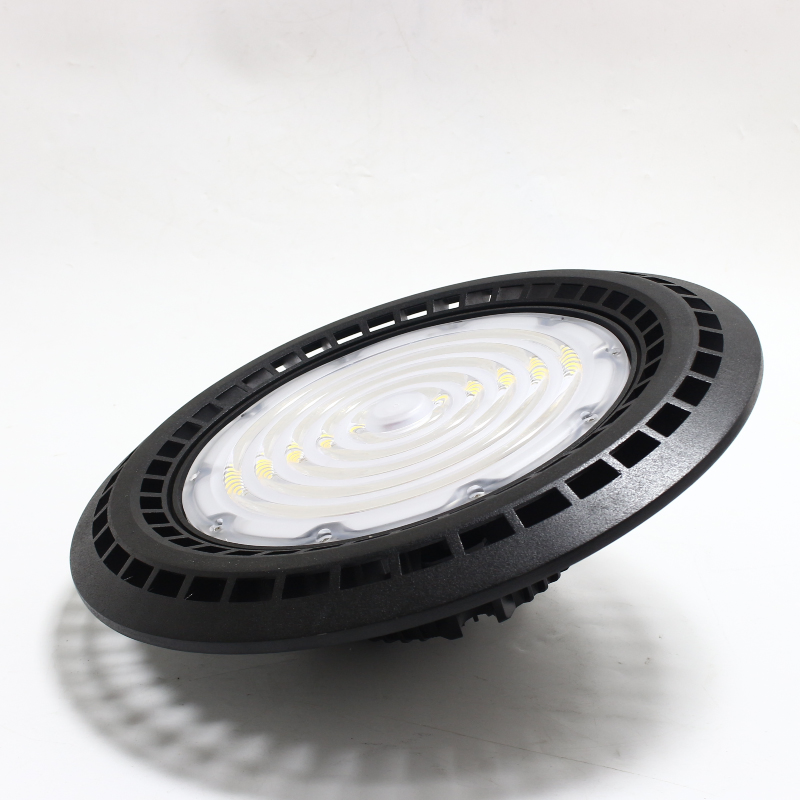

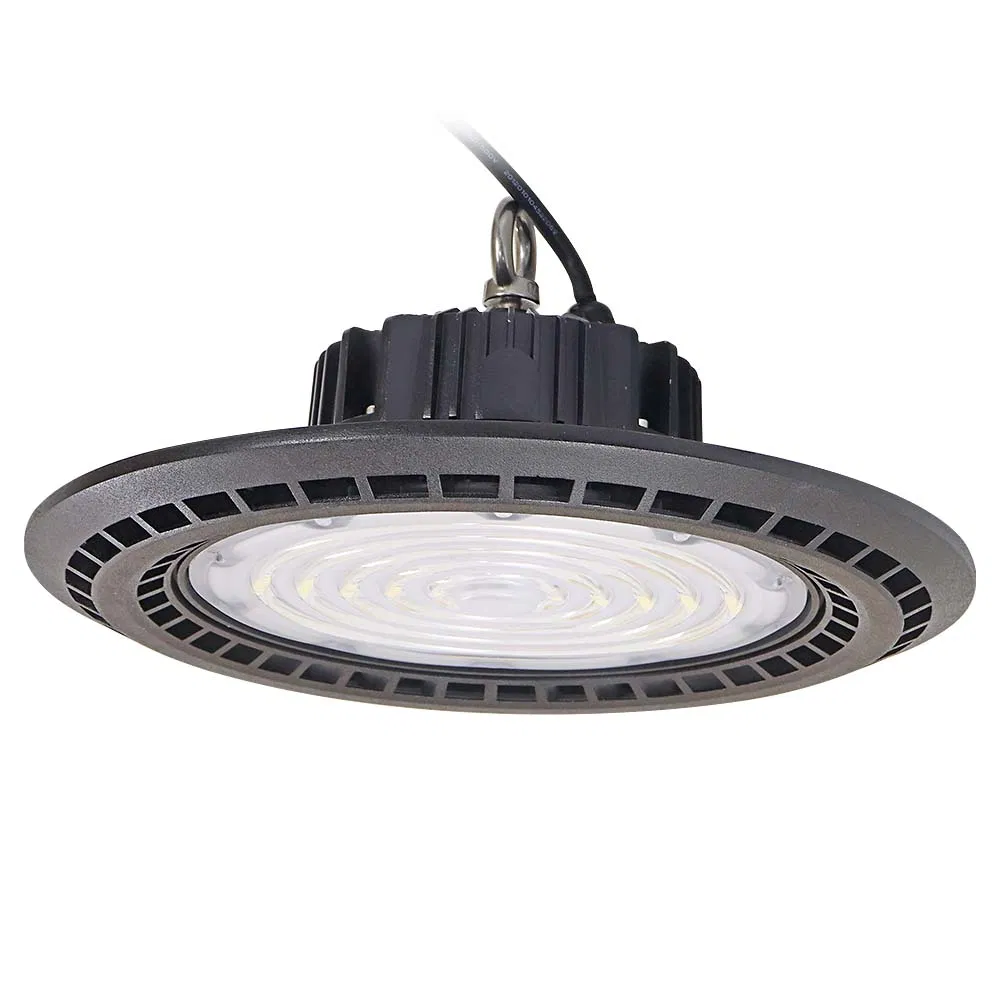

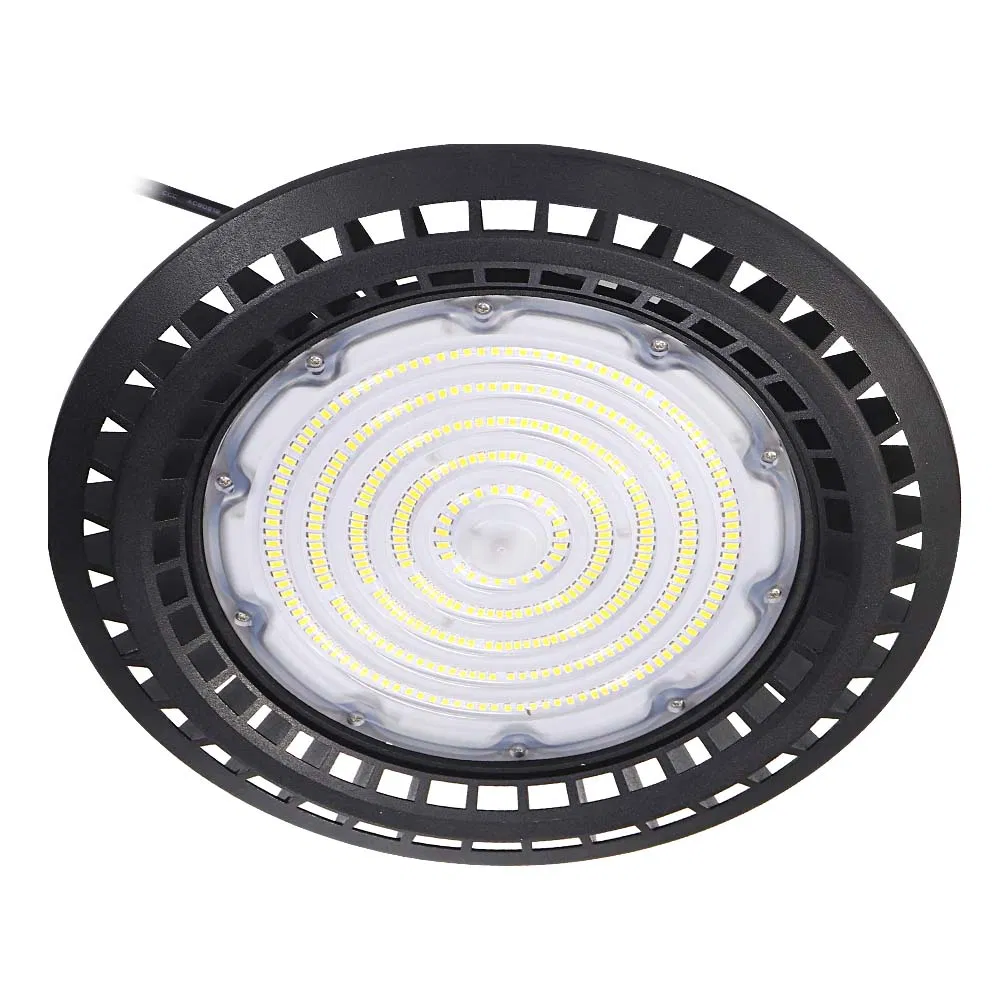

Product Showcase

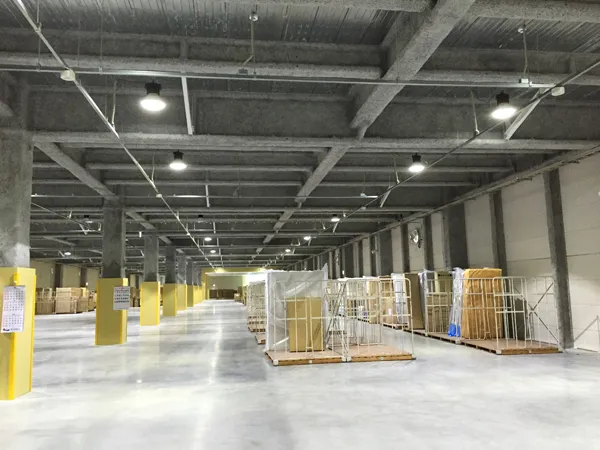

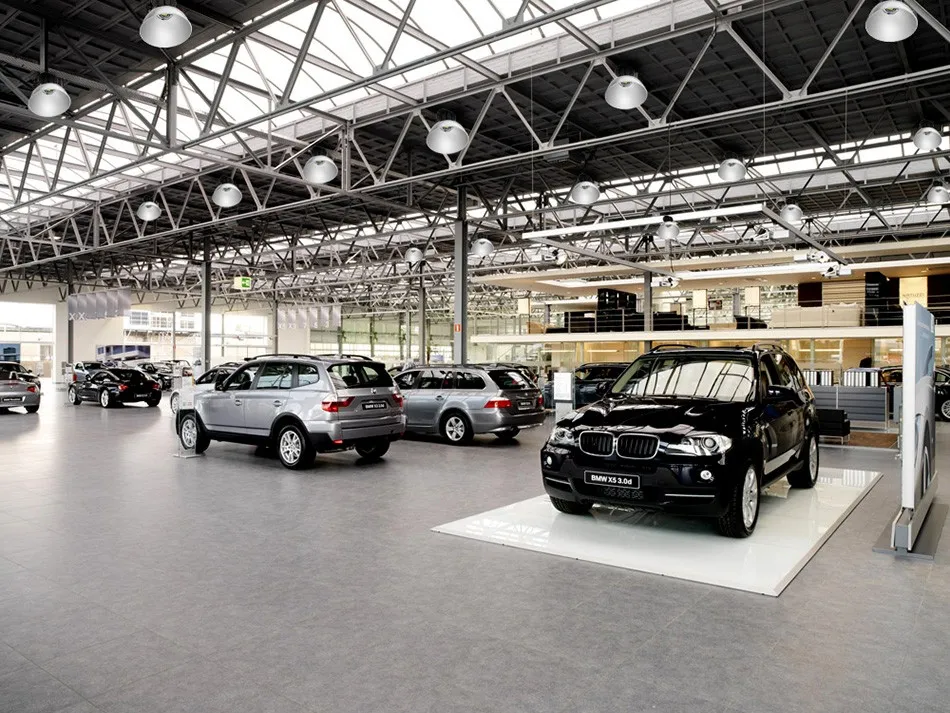

Wide Applications
- Industrial factories and production workshops
- Warehouses and storage rooms
- Gymnasiums, stadiums, and golf courses
- Supermarkets and shopping malls
- Exhibition halls and commercial spaces
- Airports, subways, and train stations
- Outdoor plazas, parks, and yards
- Gas stations and highway toll stations
Quality Control & Maintenance
- Stability Test: 100% of lamps undergo at least 48 hours of aging tests.
- Lighting Test: 100% functionality check before packing.

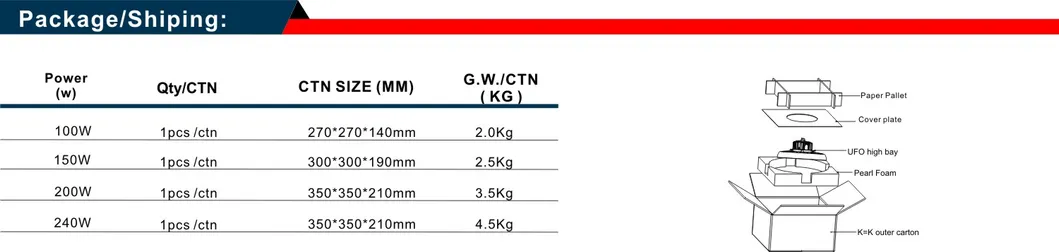

- Drop Test: Verification of packaging protection for safe transport.
- Maintenance: Ensure power is switched off before any installation or work.
Frequently Asked Questions
What is the lifespan of this UFO High Bay Light?
The light is designed for long-term durability with a lifespan of ≥50,000 hours.
Can this light be used in wet or outdoor environments?
Yes, it features an IP65/IP67/IP68 rating, making it resistant to heavy rain and dust, suitable for tunnels and outdoor use.
What mounting options are available?
It supports various installation methods including suspending ring, chain, supporting rod, wall mount, and surface mount.
What is the warranty period?
We provide a 5-year warranty for models with high-end drivers and a 3-year warranty for standard UL/CE drivers.
Does the light support dimming or sensors?
Yes, optional functions include 1-10V dimming, motion sensors, daylight sensors, and microwave sensors.
What materials are used in the construction?
The housing is made of die-cast aluminum for excellent heat dissipation, with a high-quality PC lens and stainless steel screws.
