Product Description

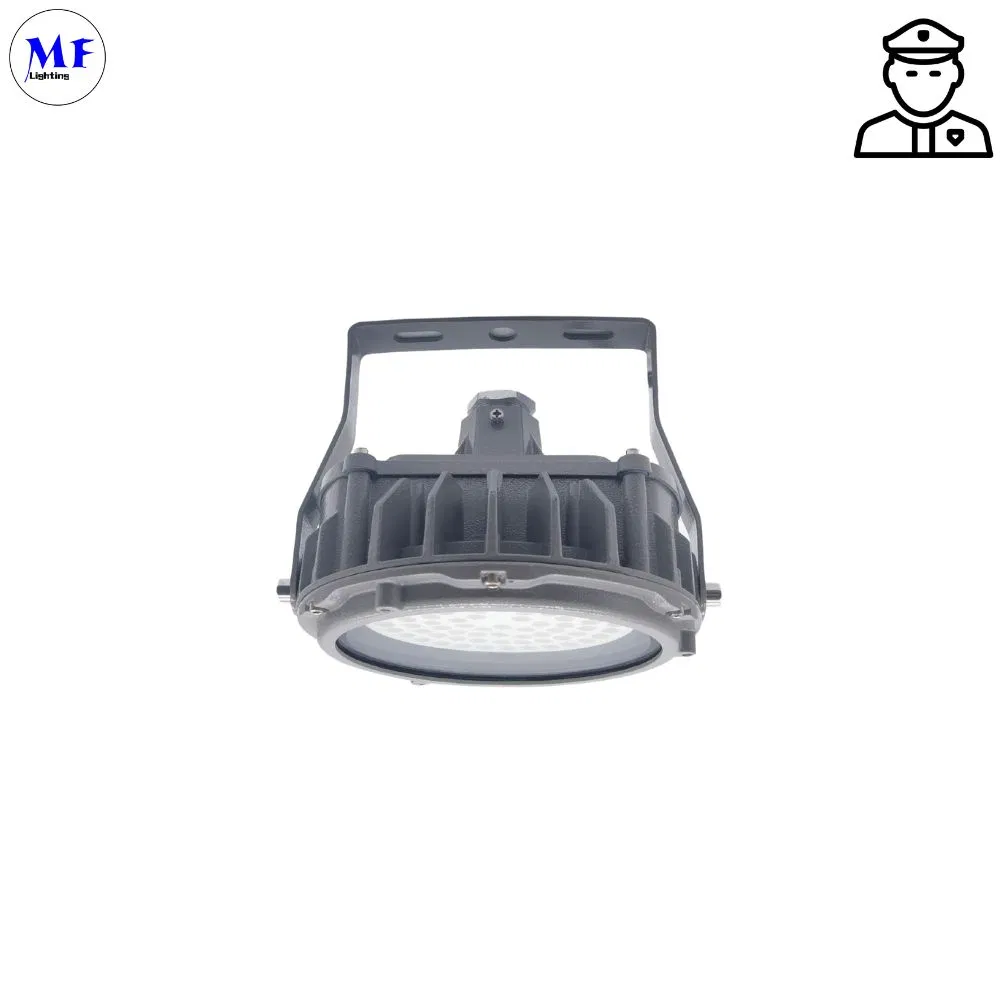

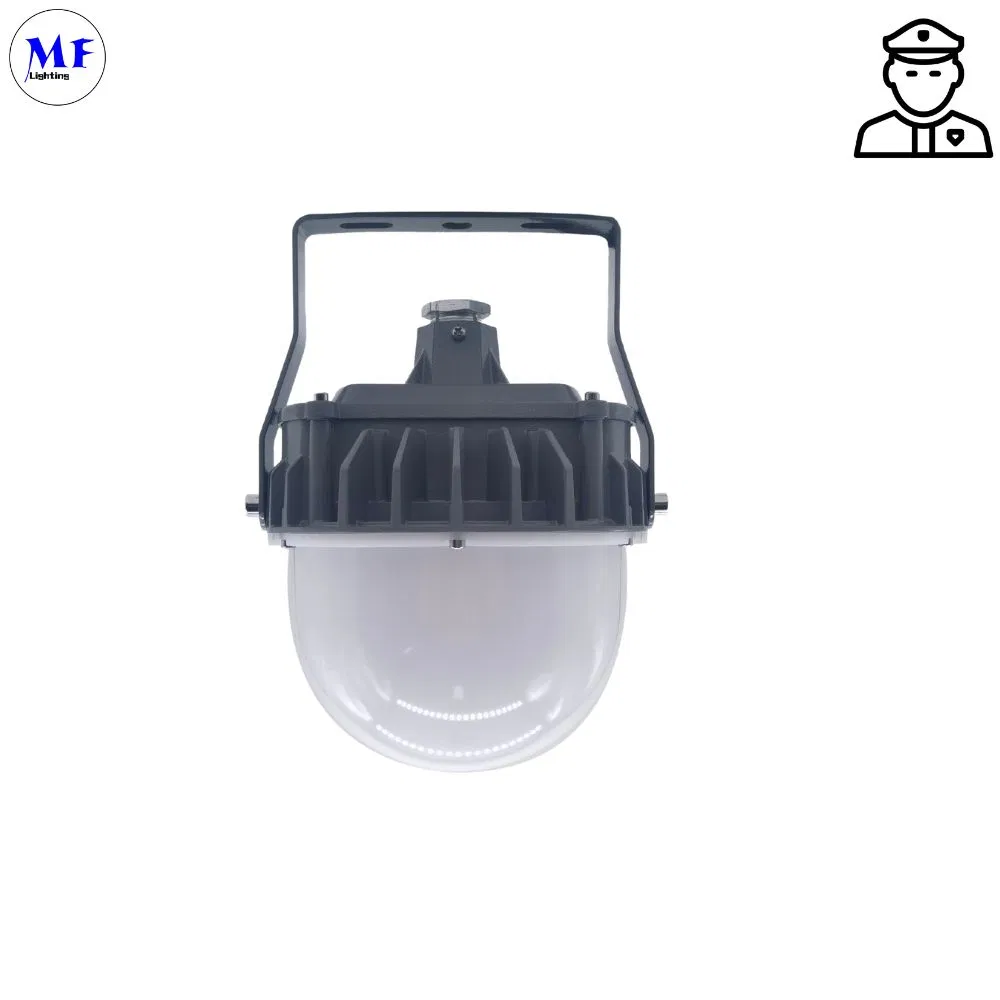

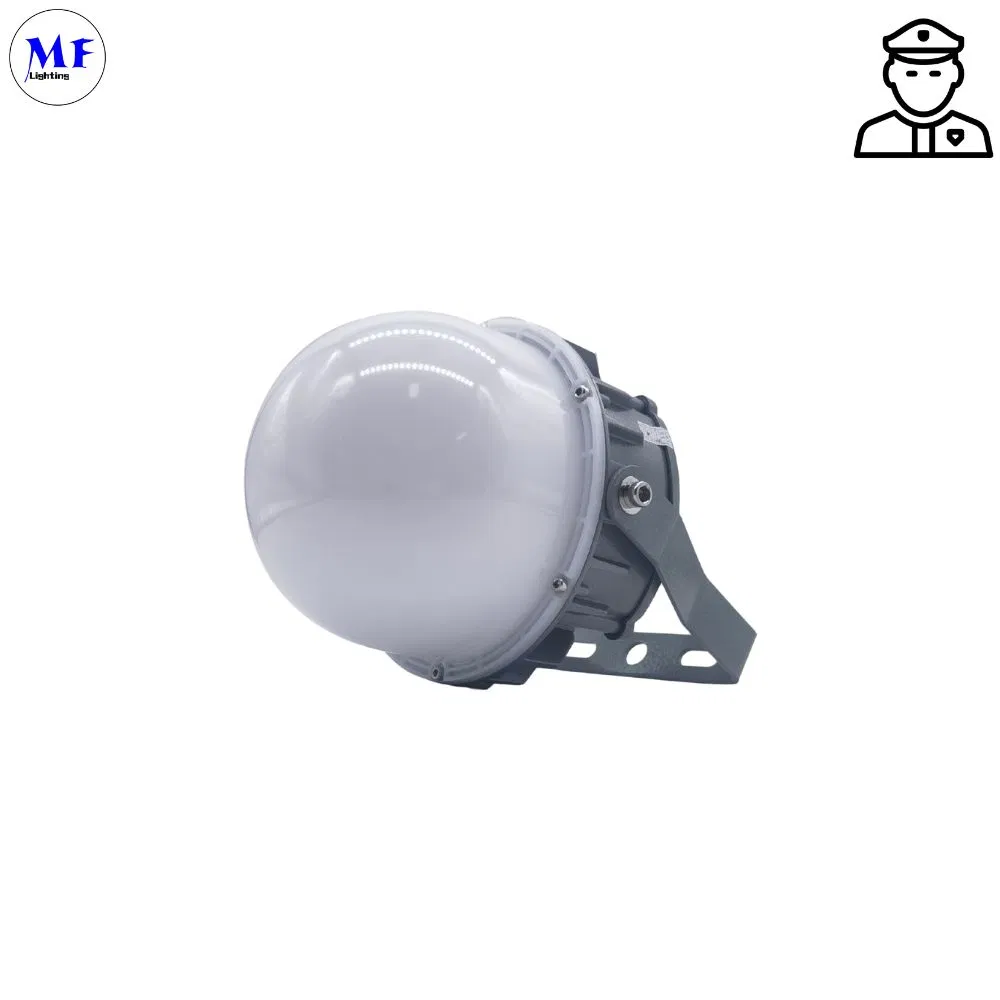

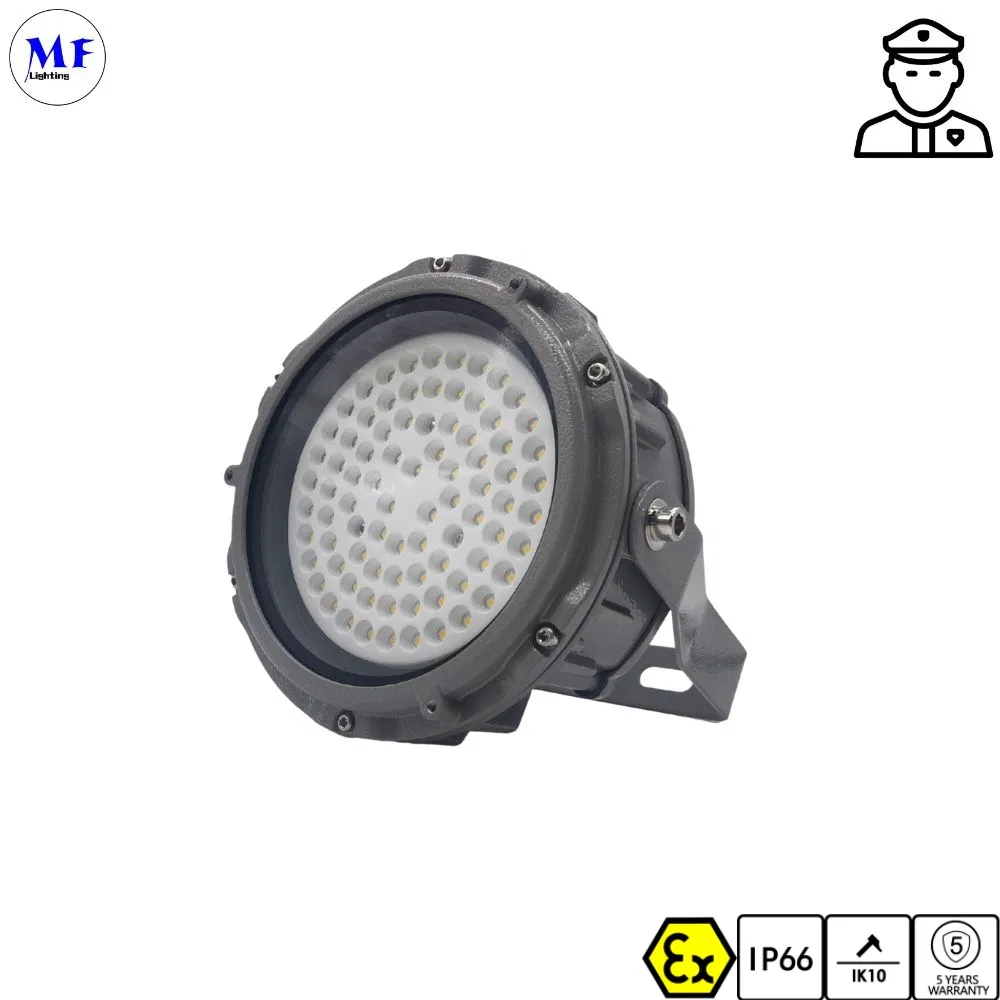

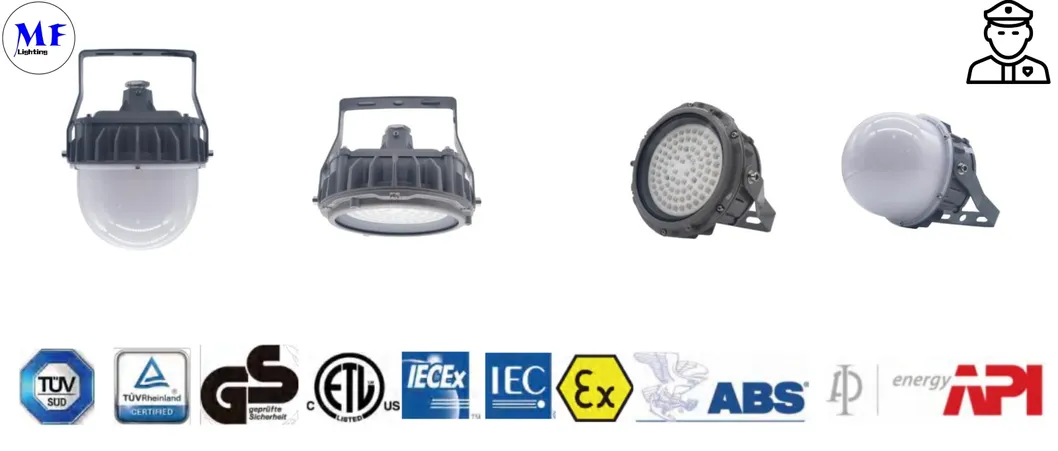

20W 40W 60W IP66 IK10 Explosion Proof UFO Highbay LED Light

A heavy-duty, high-impact resistance LED lighting solution specifically designed for offshore platforms and power manufacturing plants where water, dust, and explosive risks are present.

Basic Specifications

Model NO.

MF Security Man 6

Base Type

E26

Input Voltage

100-227V

Power

20W/40W/60W

Color Temp

2000K-7000K

LED Chips

CREE/Lumen/Atmospherics

Certification

CCC, CE, RoHS, SAA, UL844/Atex/Iecex/Ex

Efficiency

130-140lm/W

Material

Aluminum/Tempered Glass/SUS 304

Working Temp

-40°~+60°

Protection Rate

IP66 / IK10

Origin

China

Key Features

Working Temperature: -40°C ~ +55°C.

High quality SMT LED chips.

Heavy-duty and high impact resistance.

Replaceable LED board and drivers.

Integrated junction box for driver.

Dimmable and battery back up function available.

Marine rating powder coated finish.

Up to 5 years warranty.

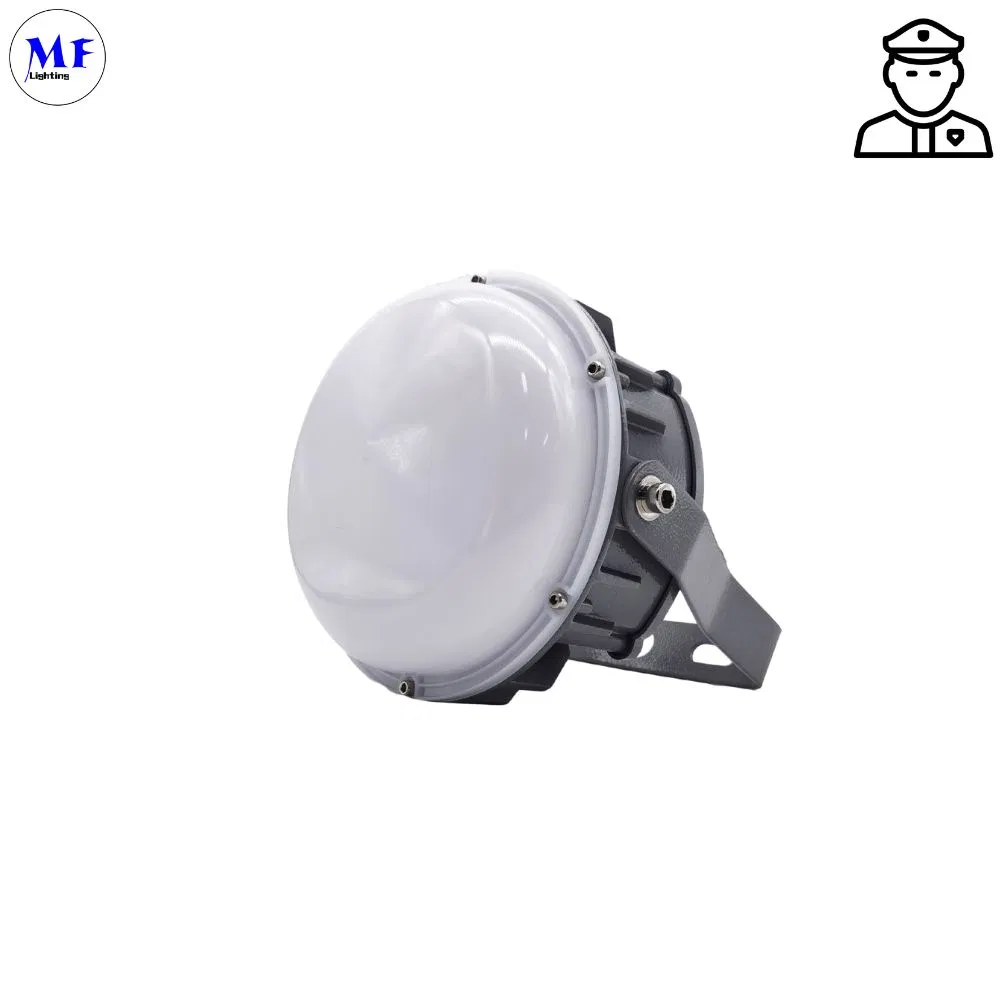

Glass or polycarbonate lens for different beam angles.

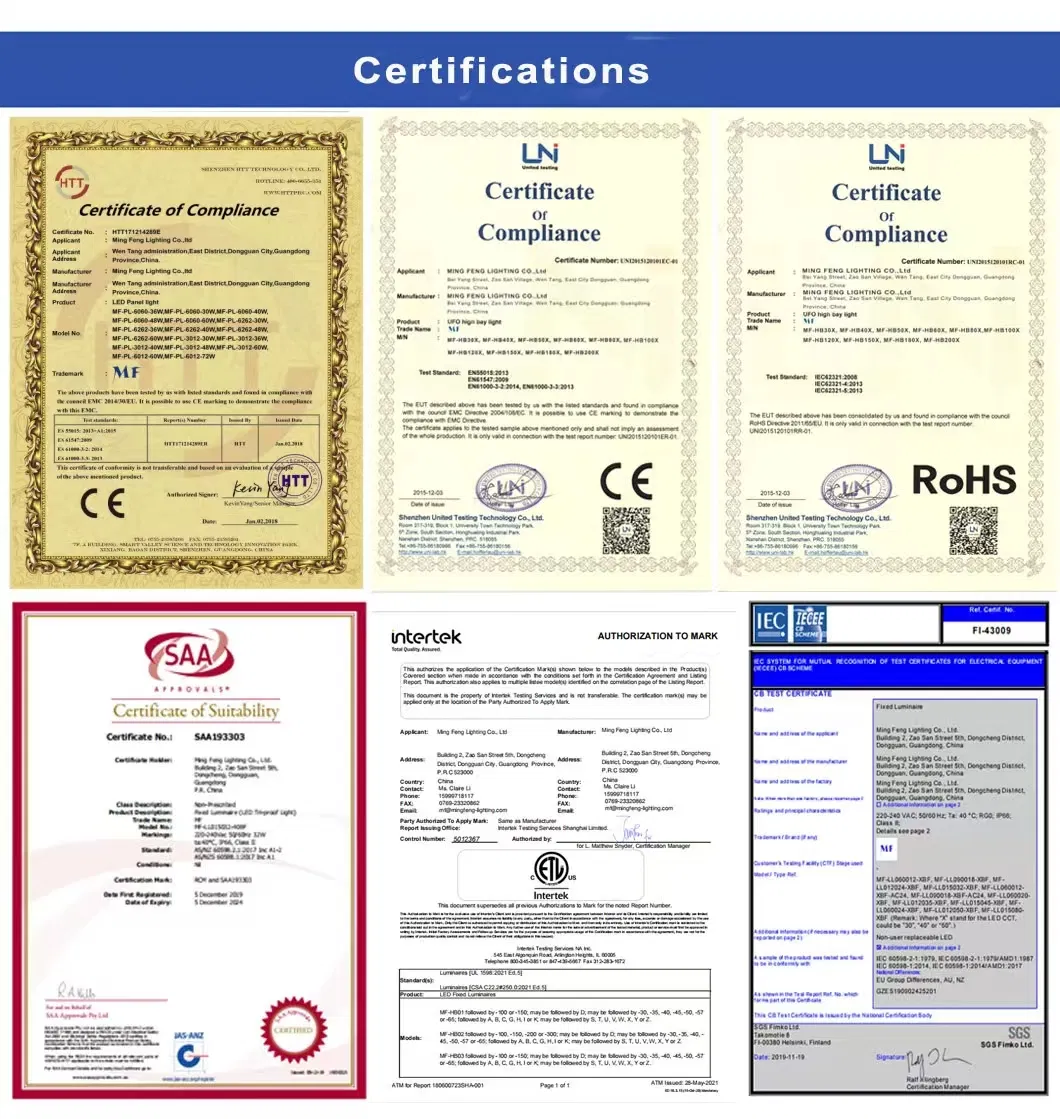

Safety Certifications

ATEX II 2 G Ex eb mb IIC T6...T4 Gb / II 2 D Ex tb IIIC T80°C...T100°C Db IP66

IECEx Ex eb mb IIC T6...T4 Gb / Ex tb IIIC T80°C...T100°C Db IP66

UL844 Class I, Div 2; Class II, Div 1&2; Class III

Marine UL1598, UL1598A, ABS

Rating IP66 Ingress Protection

Technical Specification

Product Number	Wattage	Color Temp	Voltage	Lumens	Warranty	CRI	Emergency
EX-20WB3YZDA / EX-40WB3YZDA	20W / 40W	2200K-7000K	AC200-250V / DC12-48V	2600 - 4200 lm	5 Years	70+	3 Hours
EX-60W B3YZDA	60W	2200K-7000K	AC200-250V / DC12-48V	7800 - 11200 lm	5 Years	70+	3 Hours

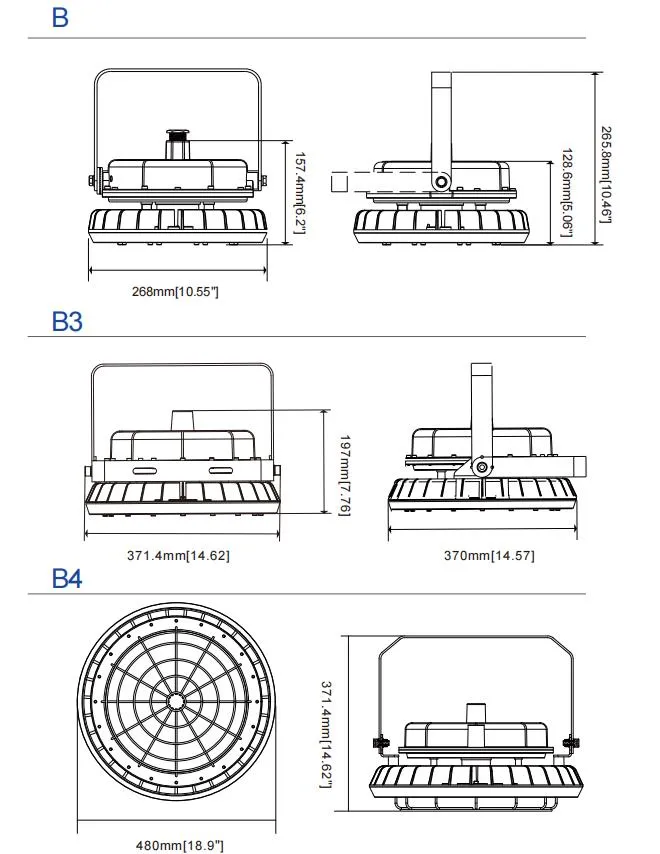

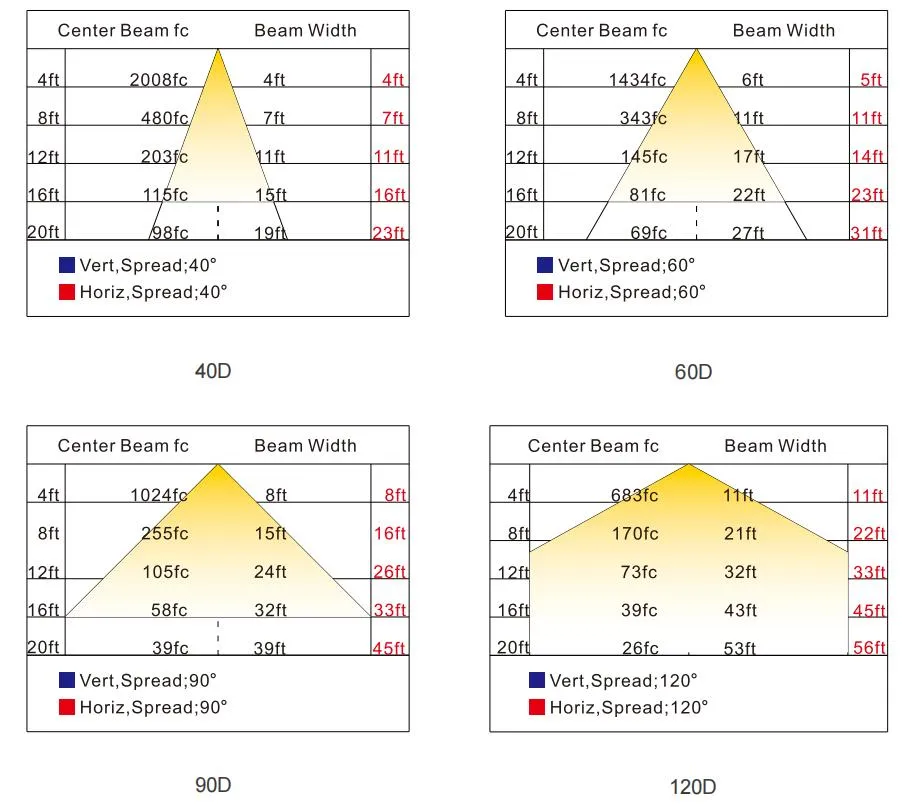

Light Distribution & Dimensions

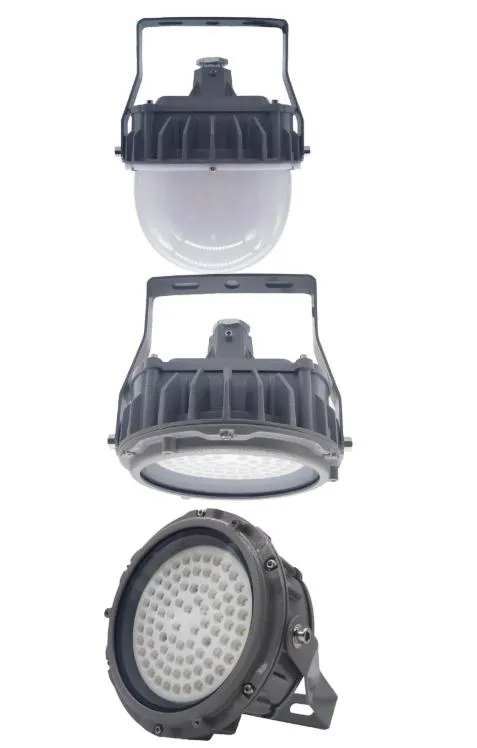

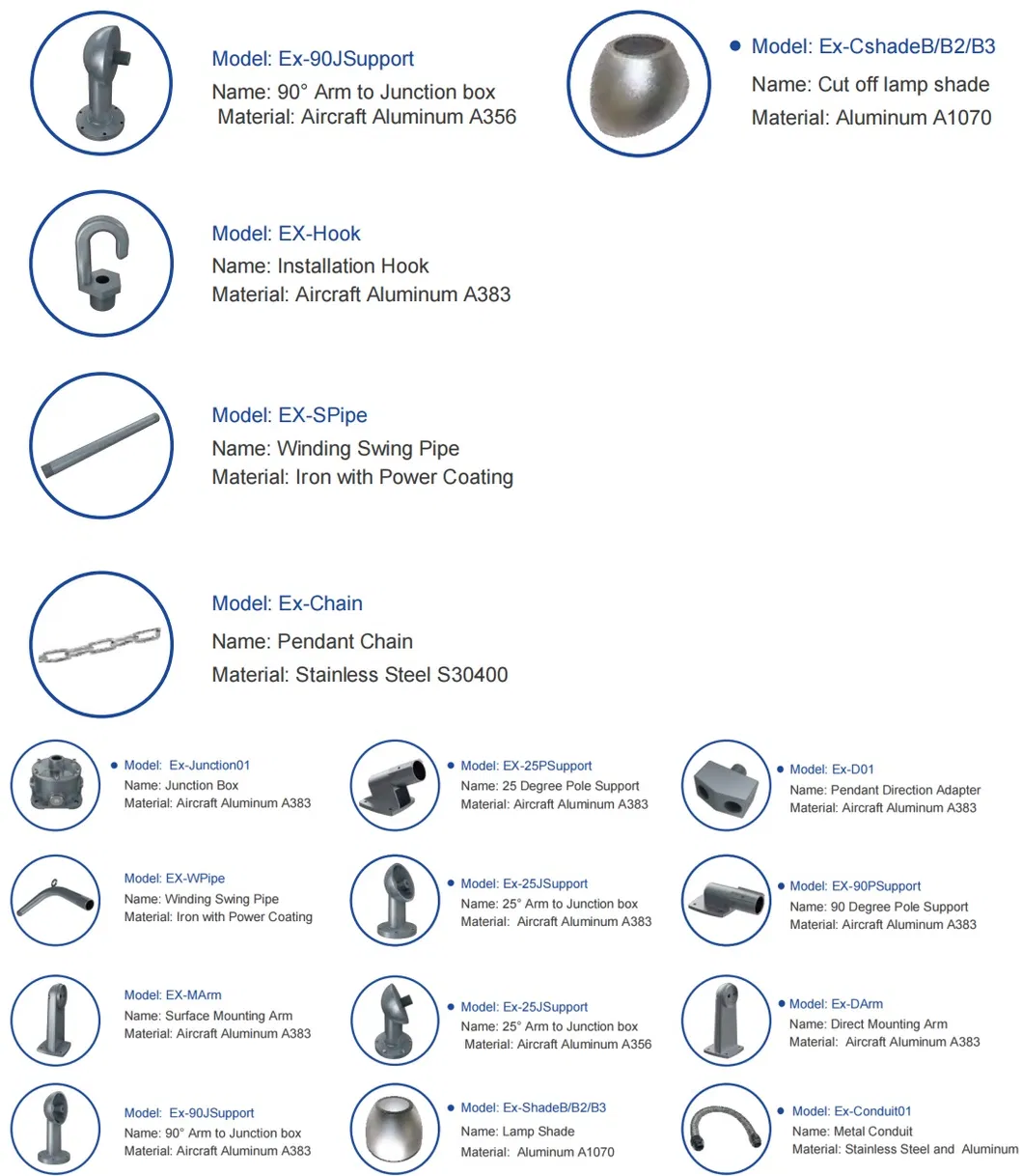

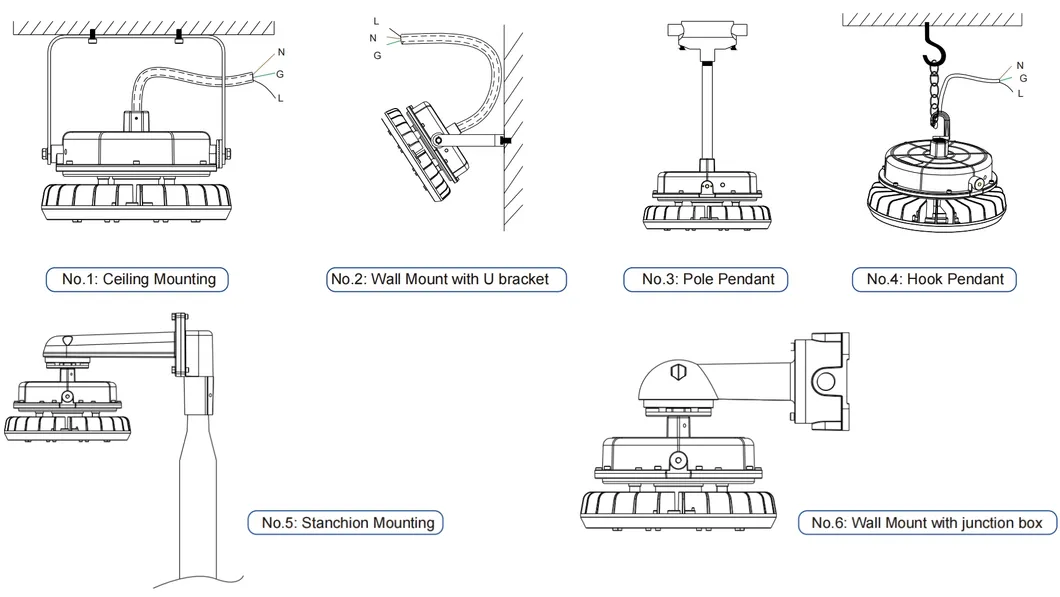

Mounting Options

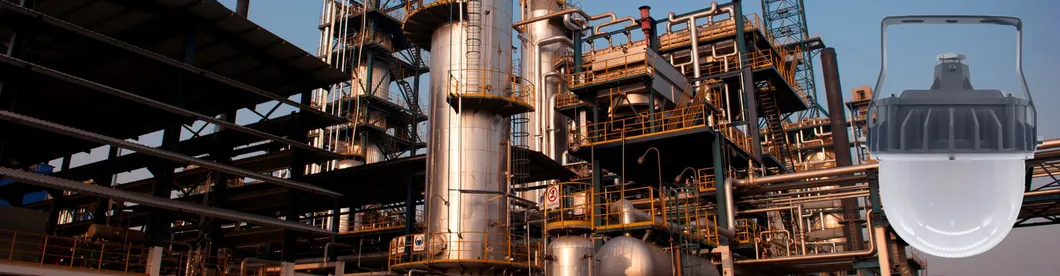

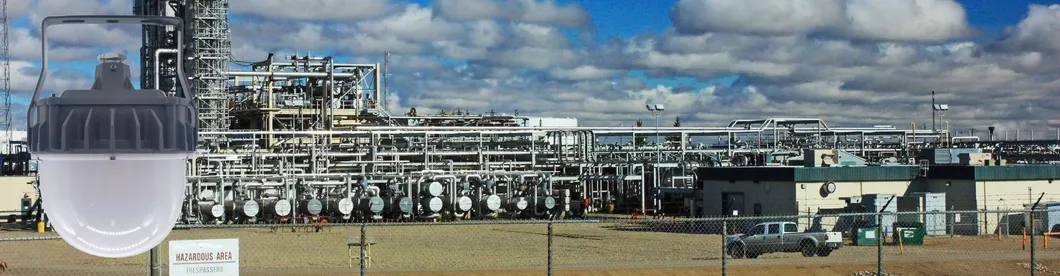

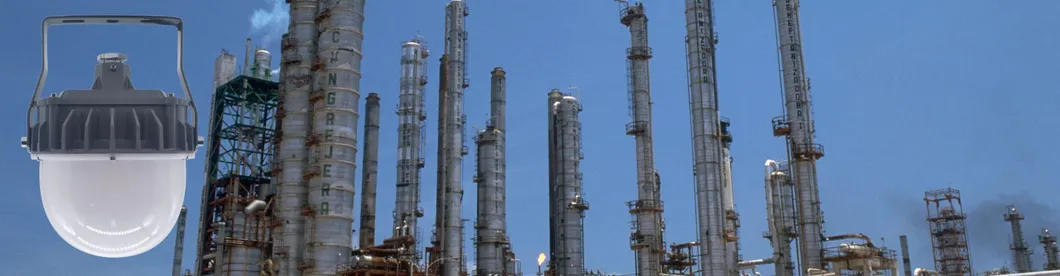

Industrial Applications

Oil and Gas

Petroleum production and refining
Loading and transportation
Petroleum storage and retail
LNG industry & Mining service

Chemical & Metal

Paint facilities and chemical storage
Steel and aluminum factories
Pumping stations
Foundry and fabrication

Marine & Food

Ocean platform operations
Aerospace clean rooms
Flour and particle production
Alcohol and distilling industry

Packaging Details

Model	Qty/Carton	Length(cm)	Width(cm)	Height(cm)	N.W(KG)	G.W(KG)
B3	1	30	30	20.5	2.2	2.8

Frequently Asked Questions

What is the operating temperature range for this light?

The light is designed to operate reliably in extreme environments ranging from -40°C to +60°C.

What certifications does the light carry for hazardous locations?

It holds multiple international certifications including ATEX, IECEx, and UL844 (Class I Div 2, Class II Div 1&2).

Is this product suitable for marine or offshore use?

Yes, it features a marine-rated powder-coated finish and meets UL1598A and ABS standards for ocean platforms and vessels.

Does the light support emergency battery backup?

Yes, emergency functions are available with a backup time of approximately 3 hours.

What is the warranty period for this explosion-proof light?

This product comes with a comprehensive warranty of up to 5 years.

What wattages are available for the MF Security Man 6?

It is available in three power options: 20W, 40W, and 60W to suit various installation heights and area requirements.
