Basic Specifications
Lamp Material
Aluminum Alloy
Power Supply
150W LED Shoe Box Light
Application
Square, Highway, Garden, Main Road
Certification
CE, C-tick, EMC, LVD, RoHS, SAA, VDE
LED Chips
SMD3030 (140lm/w)
Dimming Options
0/1-10V, PWM, Dali Dimmable
Driver Brand
Meanwell LED Driver

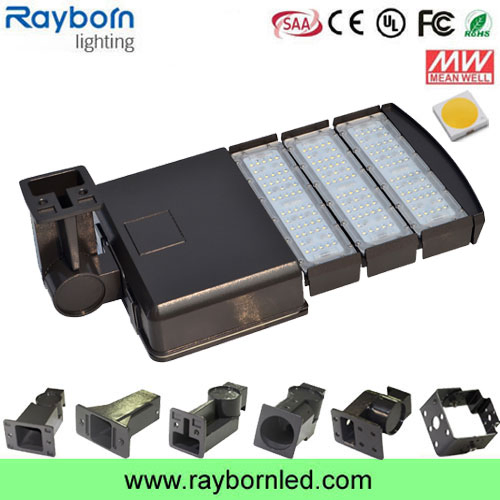

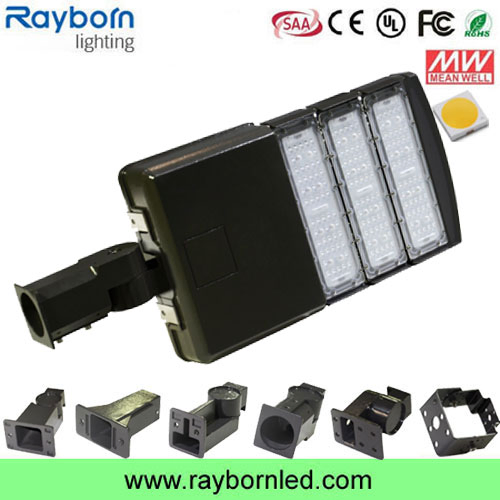

Product Overview

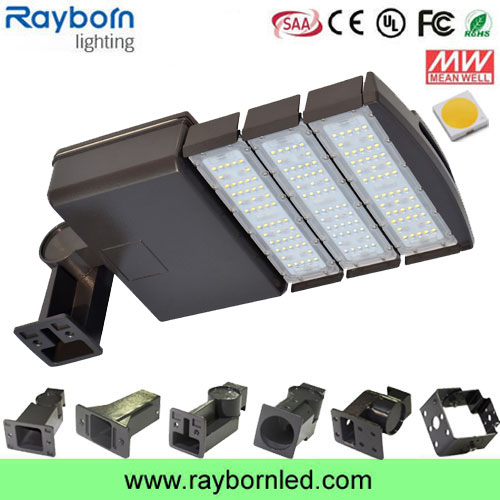

Professional 100W - 300W LED Shoe Box Street Lights
This high-efficiency LED shoebox light is designed for parking lots, gardens, and path lighting. Utilizing premium SMD3030 chips and reliable Meanwell drivers, it delivers up to 140lm/W luminous efficiency, providing a perfect replacement for traditional 500W Metal Halide lamps.
| Technical Parameters (150W Model) |
Details |
| Input Voltage | AC100~277V | Frequency Range | 50Hz~60Hz |
| LED Power | 150W | System Consumption | 155W |
| LED Quantity | 150pcs | Power Factor | >0.98 |
| Luminous Flux | 16500LM (Pure/Cool White) | Viewing Angle | 140/90 degree |
| Color Temperature | 3000K-6500K | IP Grade | IP65 |
| Working Temp | -30ºC ~ 55ºC | Dimensions | 491*291*90mm |

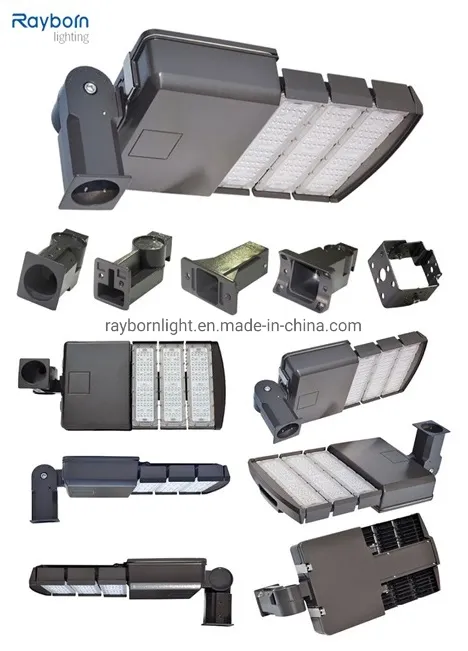

Key Features
✔
Optical Lens Design: Module lens ensures well-suited lighting distribution for large area parking lots.
✔

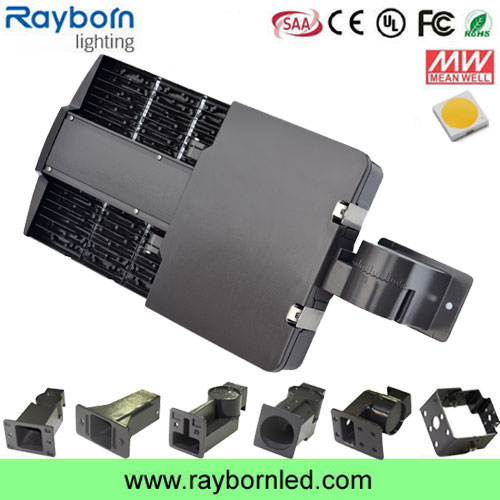

Advanced Heat Dissipation: Hollow-out heat sink design reduces weight and enhances thermal management.
✔

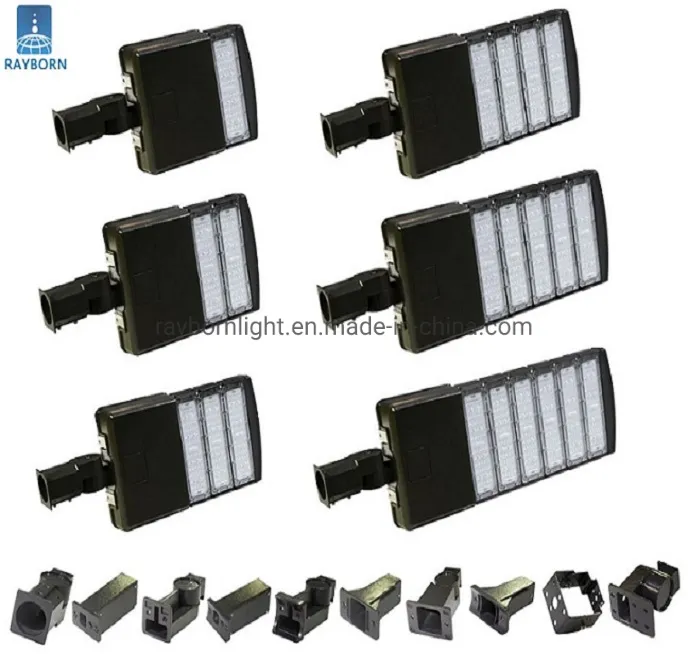

Multiple Mounting: Compatible with 11 different types of installation brackets.
✔
Sensor Compatibility: Supports photocell and motion sensors for intelligent energy saving.

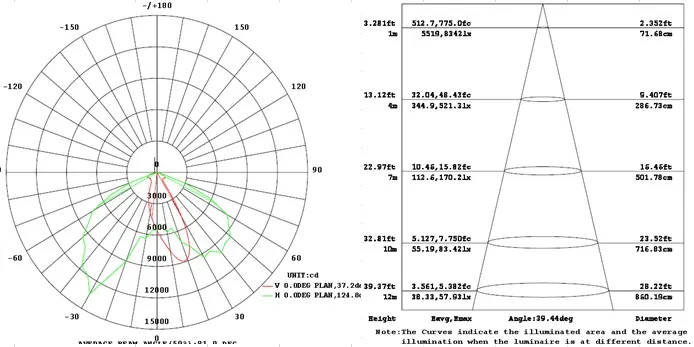

Lighting Performance
Installation & Maintenance
Step-by-Step Installation:
- Loosen the buckles and open the driver box.
- Install the mounting bracket with 4pcs screws; pass the power line through the bracket hole.
- Fasten the buckles and connect the electric wires correctly.
⚠ Cautions: Always turn off power before maintenance. Clean the lens and heat sink regularly with a dry cloth to ensure optimal light transmission and heat dispersion.

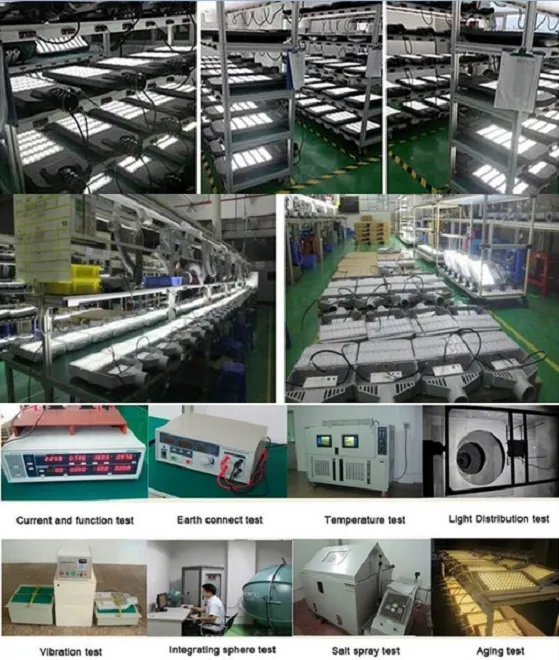

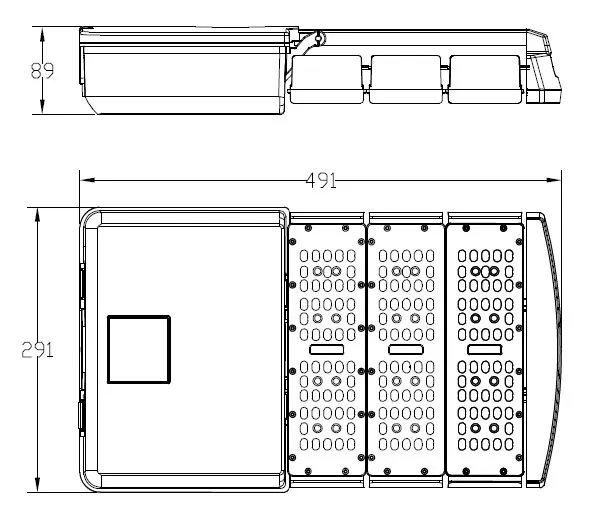

Dimensions & Testing
Packaging Information
| Item Specification |
Carton Size |
Gross Weight |
Packaging |
| 50W LED Shoebox | 59*38*18cm | 8.2kg | 1pcs/carton |
| 100W LED Shoebox | 67*38*18cm | 9.0kg | 1pcs/carton |
| 150W LED Shoebox | 75*38*18cm | 9.7kg | 1pcs/carton |
| 200W LED Shoebox | 83*38*18cm | 10.4kg | 1pcs/carton |
| 250W LED Shoebox | 91*38*18cm | 11.2kg | 1pcs/carton |
| 300W LED Shoebox | 99*38*18cm | 12.1kg | 1pcs/carton |
Wide Applications
- Parking Lot Lighting
- Highway & Street Lighting
- Outdoor Area High Mast Lighting
- Roadway & Path Lighting
- Urban Park Lighting
- Commercial Square Lighting
Quality Commitment
We provide high-end industrial LED lighting solutions, focusing on environmental protection and energy efficiency. Our factory is ISO9001:2000 certified, and products carry CE, FCC, RoHS, and TUV authentications.
Frequently Asked Questions
What is the standard warranty for these LED lights?
We offer a 3 to 5-year warranty depending on the specific model and project requirements, covering any quality-related issues under normal usage.
Which LED chips and drivers are used?
Our shoebox lights use high-performance SMD3030 chips (140lm/W) and world-renowned Meanwell HLG drivers for maximum reliability.
Are these lights suitable for coastal environments?
Yes, the aluminum alloy body and IP65 rating, combined with rigorous salt spray testing, make them durable for various outdoor environments.
What payment and shipping terms do you offer?
We accept T/T, PayPal, and L/C. Shipping is available via sea for bulk orders, air for small quantities, and express (DHL/FedEx) for samples.
Can I customize the light with sensors or specific colors?
Yes, we provide OEM/ODM services, including the addition of photocell/motion sensors and custom housing colors like brown or black.
What certifications do your products hold?
Our LED products are certified by CE, EMC, LVD, ROHS, FCC, C-tick, and SAA, ensuring compliance with international safety standards.
