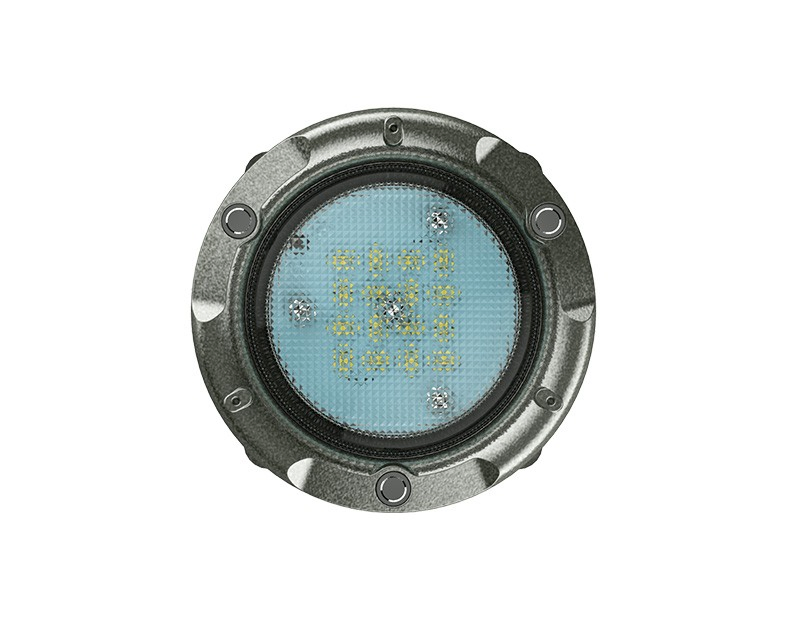

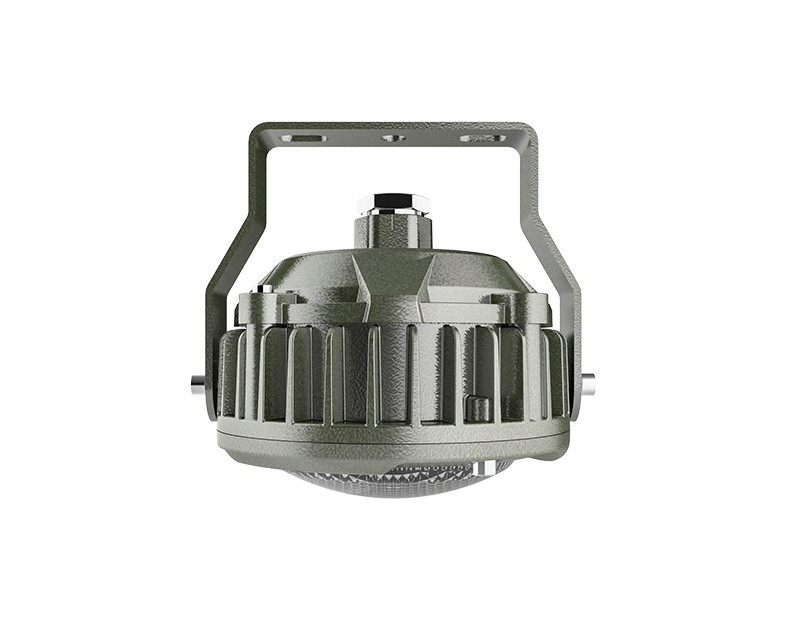

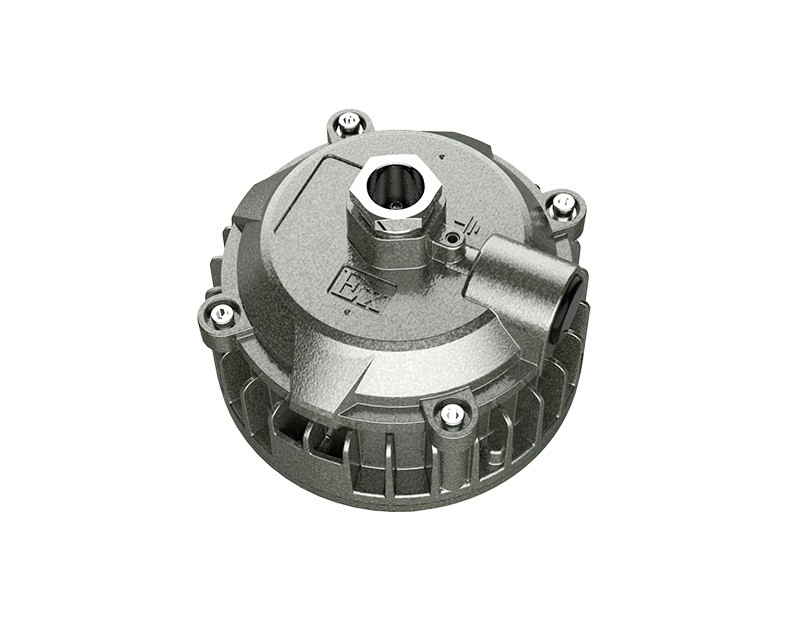

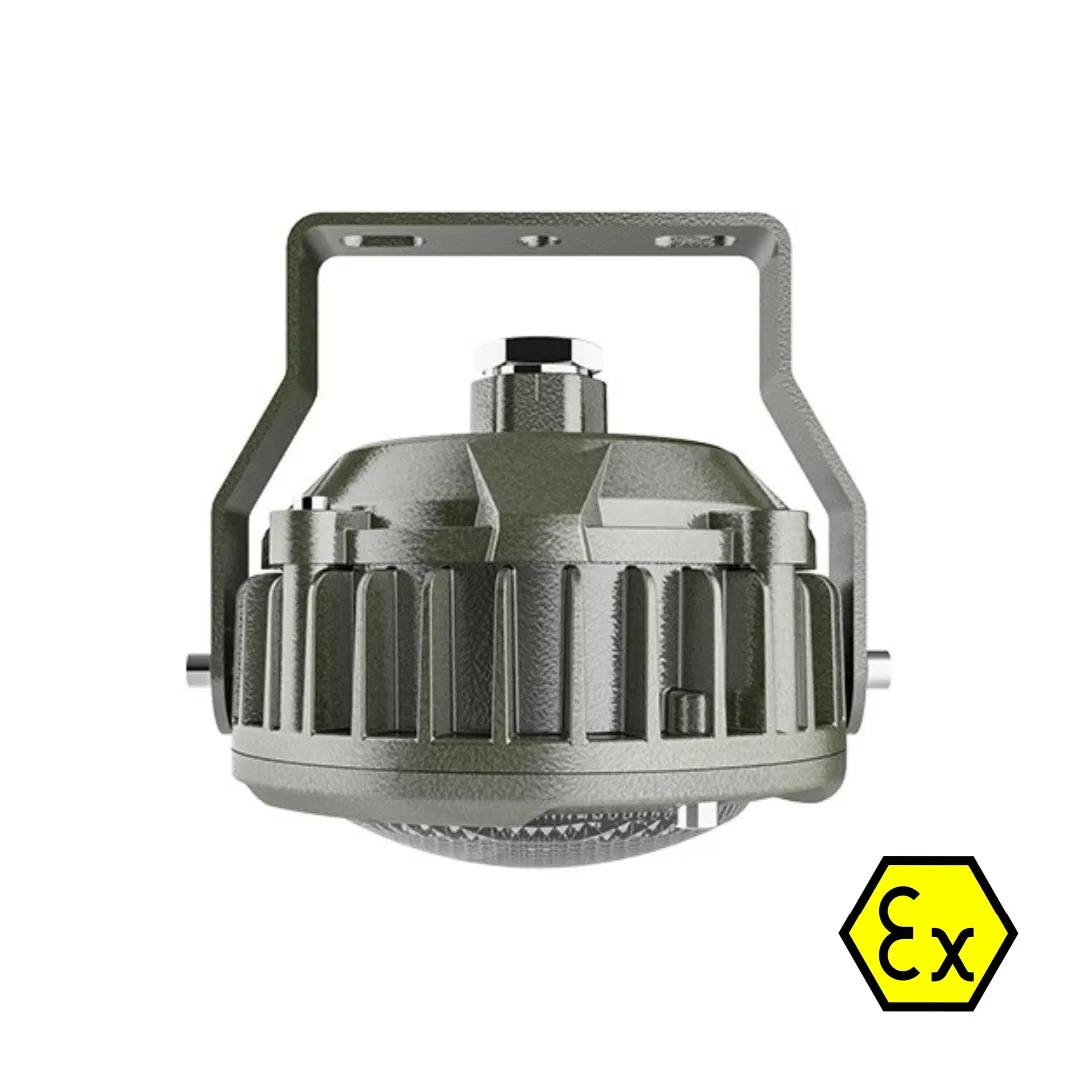

ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
1 / 5
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System
ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System

ATEX 10W 20W 30W LED Explosion Proof Hanging Lamp for Zone1 Zone2 Oil and Gas Add Bracket Dali System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.MXEL-9185
Irradiated Area≥30m²
Input Voltage220v
Power10-30W
Color TempWarm White / 3000-6500K
LED BrandCREE 3030
CertificationCCC, CE, RoHS, ATEX
Warranty5 Years
IP GradeIP66
AnticorrosionWF2
Power Factor>0.95
Capacity500 PCS/Day
Product Description

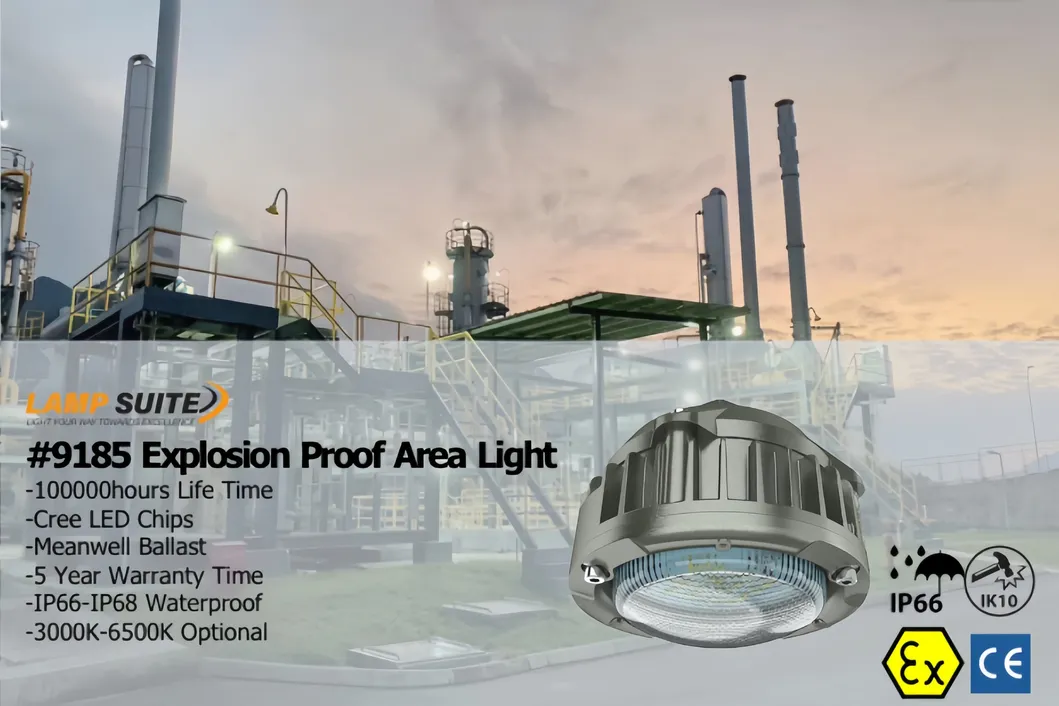

Explosion Proof Lamp Overview
ITEMWATTLUMENVOLTAGECCT
MXEL-9185 10W1200lmAC220V3000K-6500K
20W2400lm
25W3000lm
30W3600lm
CUSTOM Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor, shell color etc. DALI System available.
Key Features

Designed for environments prone to gas and dust explosions. Addressing diverse lighting needs for Zone 1 and Zone 2 locations, including paint booths and hazardous industrial areas.

01
Electrical Configuration
First-line brand CREE LED light-emitting chip, ultra-high light efficiency, average service life up to 100,000 hours.

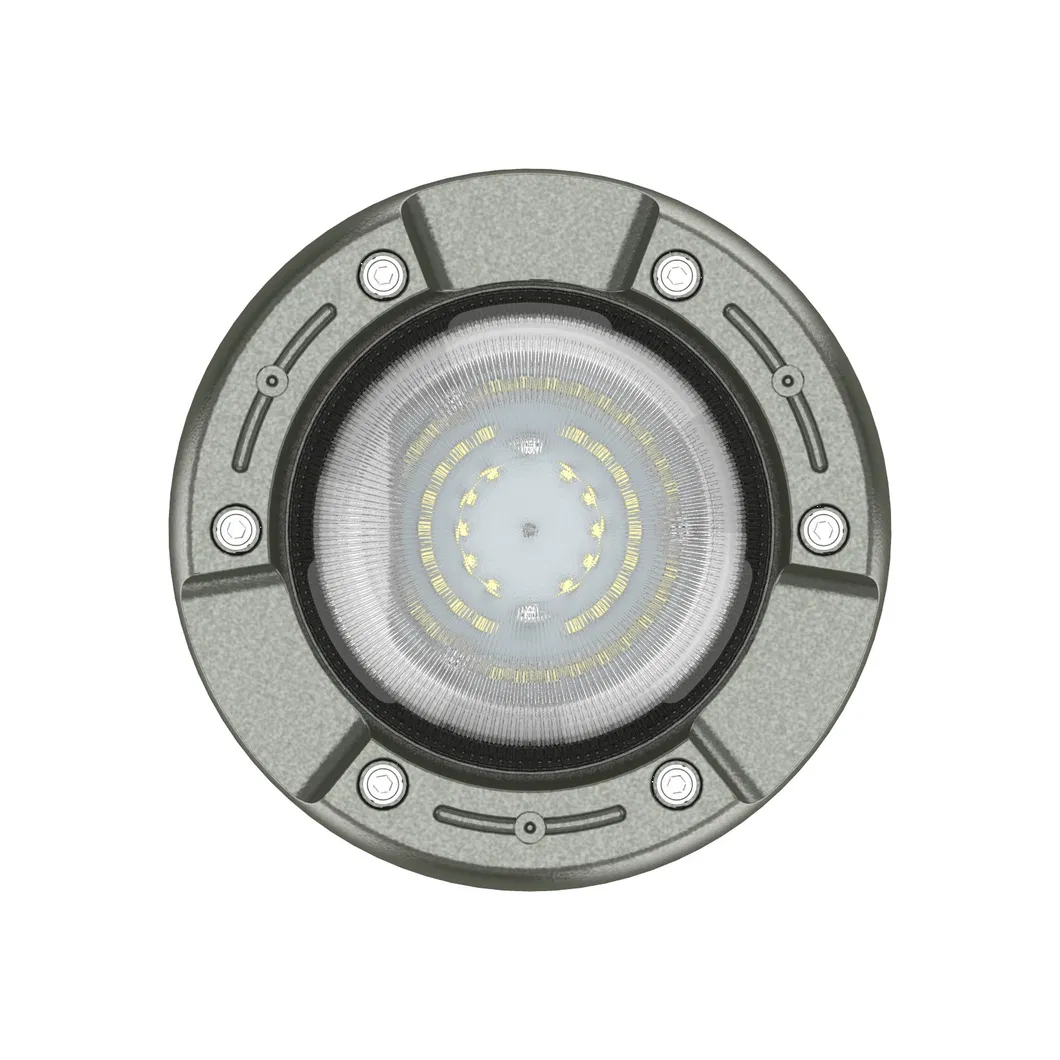

Electrical Config
02

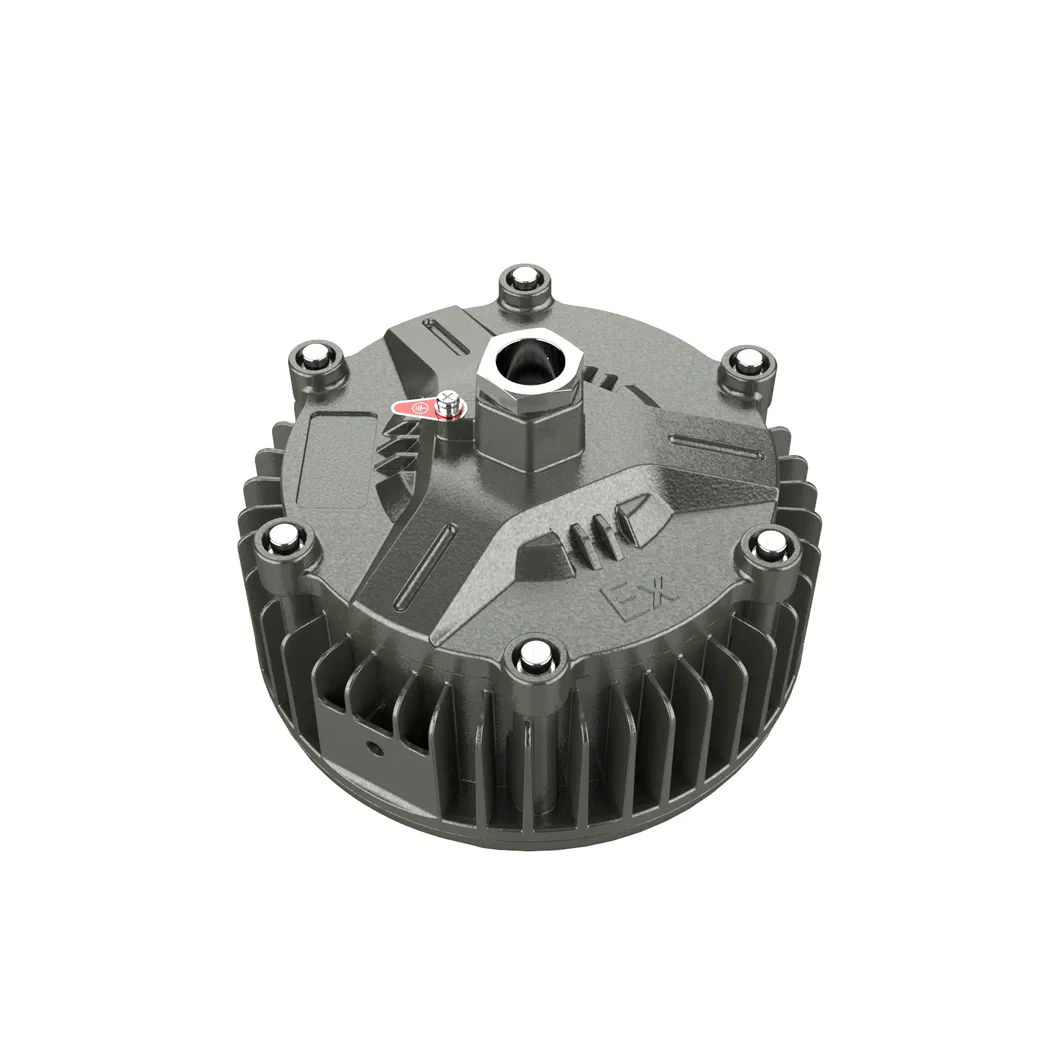

Heat Dissipation Performance
One-piece die-casting molding radiator, firm structure with excellent thermal conductivity for extended lamp life.
Heat Dissipation
03

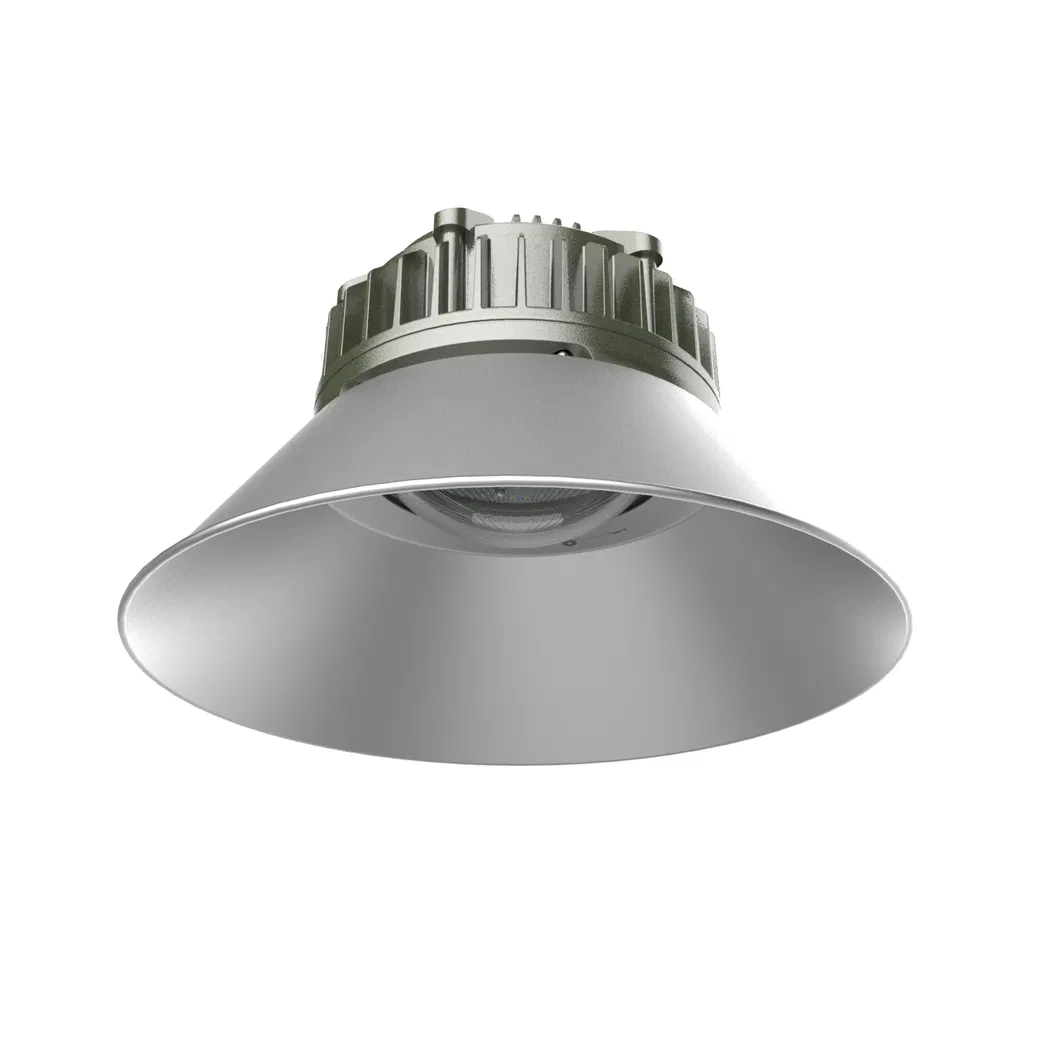

Optical Lampshade
High-strength optical-grade materials, impact-resistant, light transmittance 95%~98%, uniform anti-glare design.
Optical Shade
04

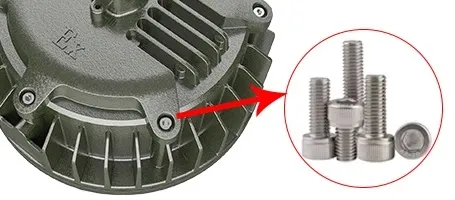

Ultra-high Anti-corrosion
Surface treated with high-voltage electrostatic spraying; stainless steel fasteners. Suitable for strong acid/alkali harsh environments.
Anti-corrosion Detail
Detailed Photos

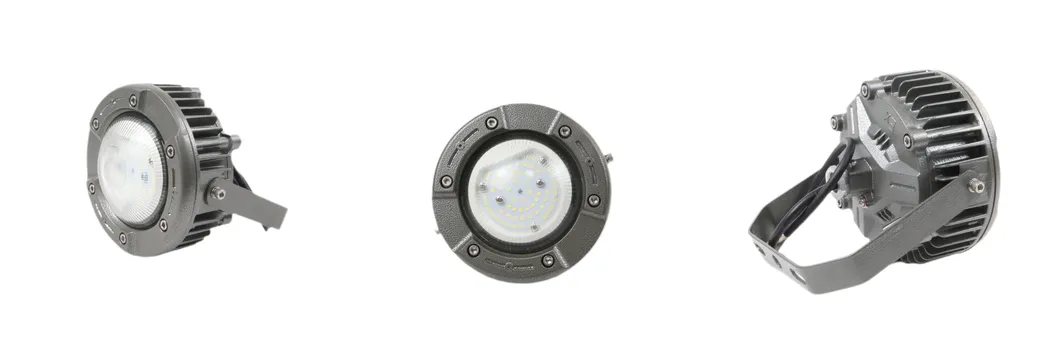

Detailed View 1

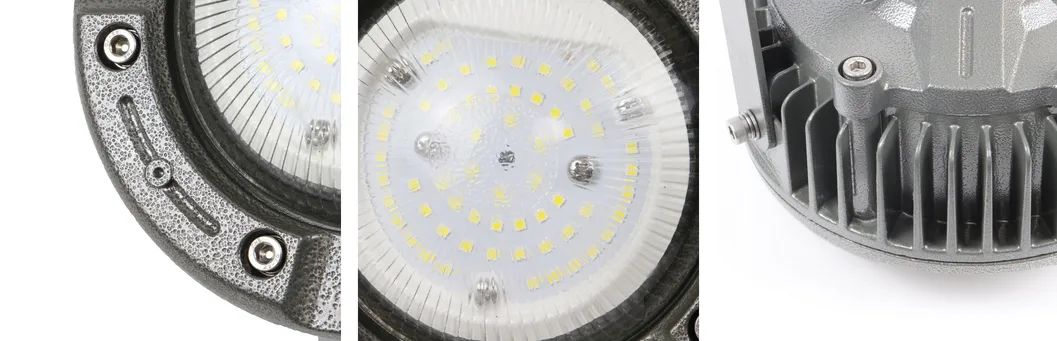

Detailed View 2
Installation & Mounting

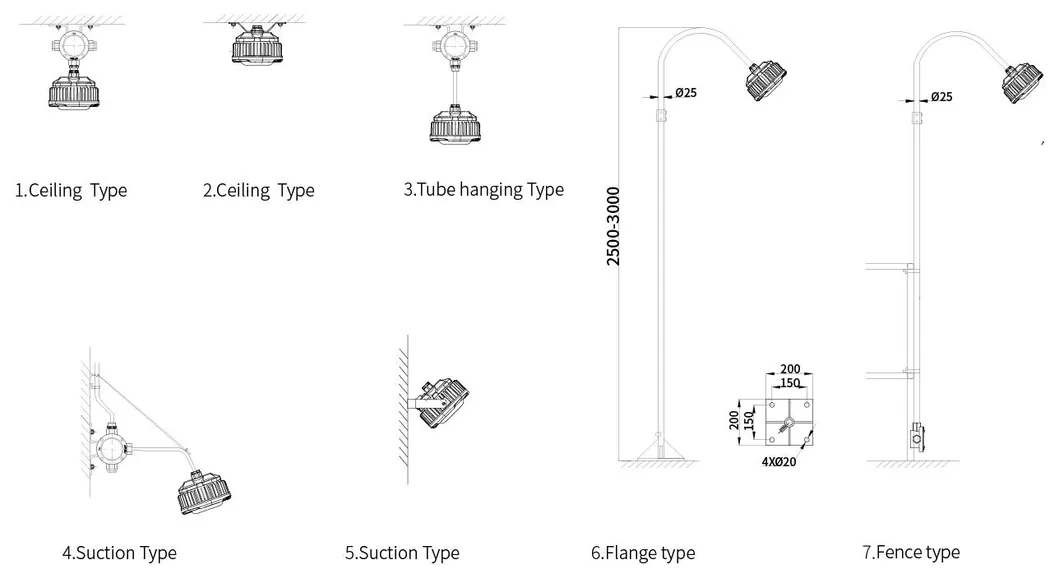

Installation Guide 1

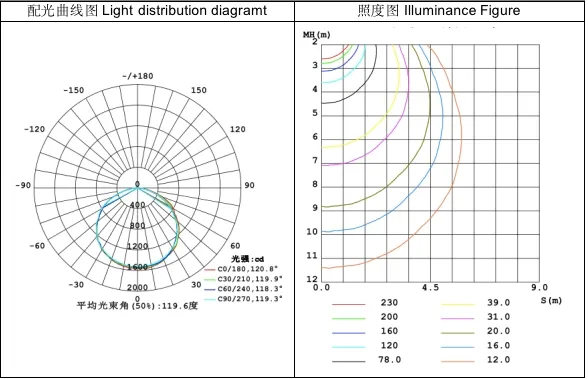

Installation Guide 2
Applications

Potentially explosive areas require specialized lighting. Our ATEX certified range provides powerful illumination and extreme durability for:

  • Gas stations & Factories
  • Dust Explosion Areas
  • Petroleum Pipelines
  • Chemical Plants
  • Oil Platforms & Tunnels
  • Warehouses

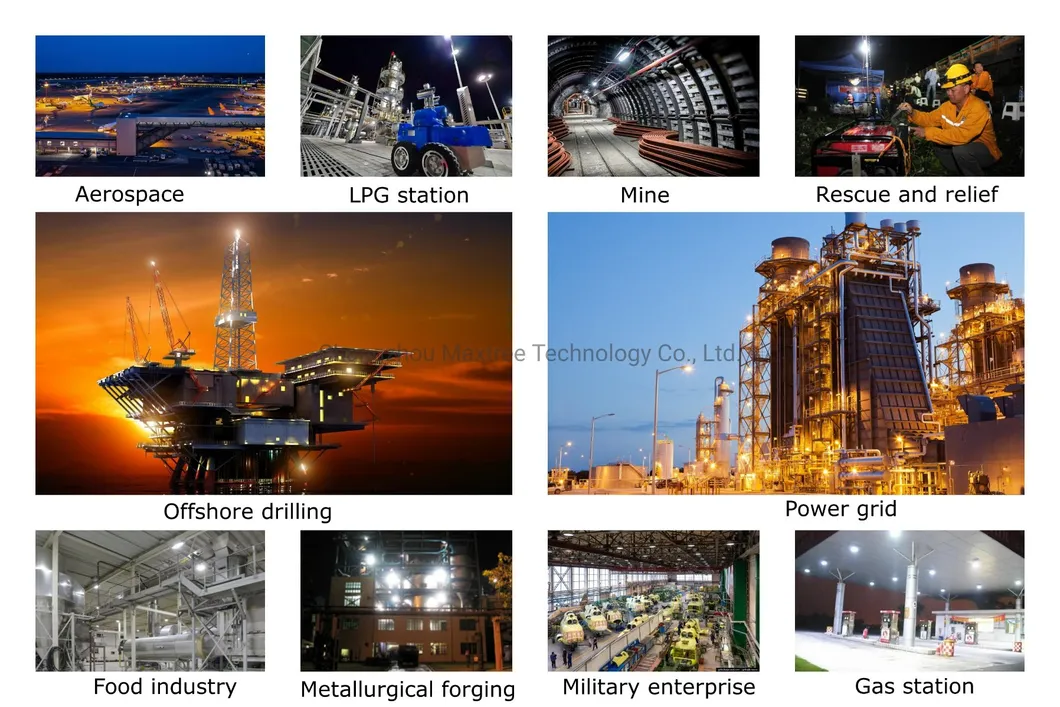

Application Scenes

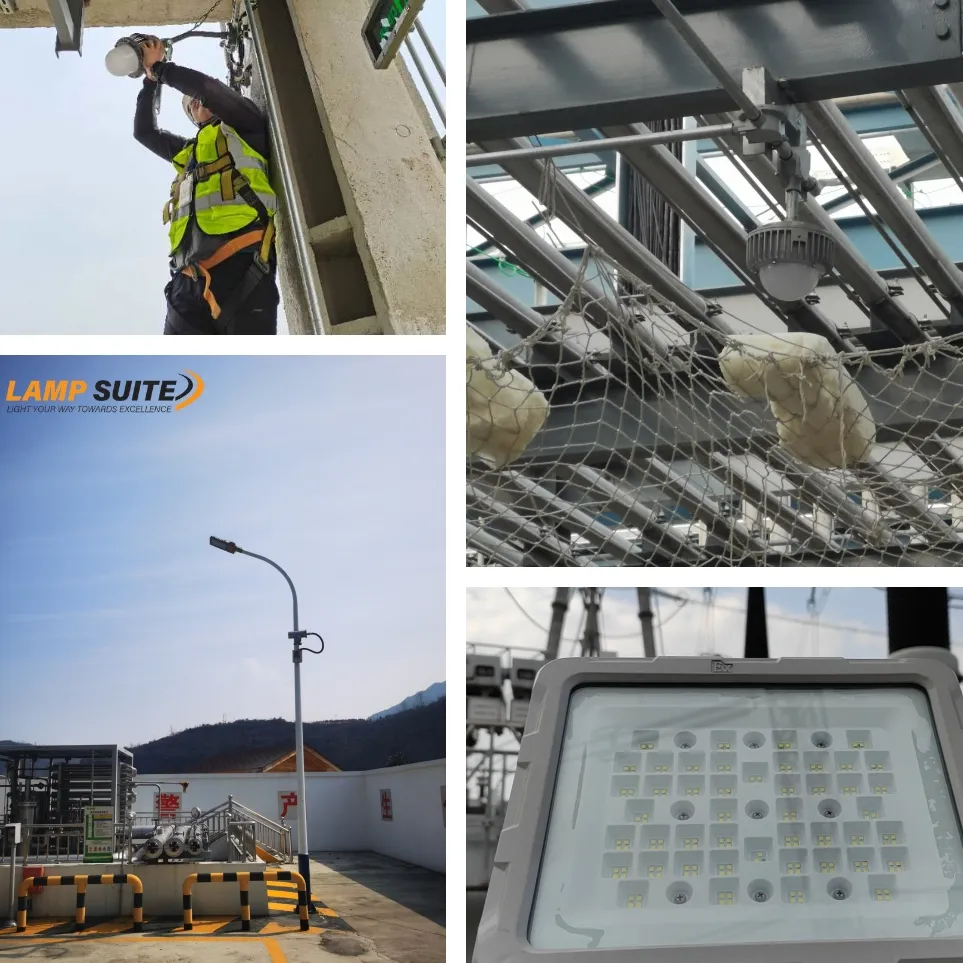

Actual Installation
Frequently Asked Questions
Why is Explosion Proof Lighting necessary?
Commercial facilities often have hazardous materials (gases, vapors, dust) that can ignite. Explosion-proof fixtures are designed to withstand abnormal conditions and prevent ignition sources from contacting volatile environments.
What defines a hazardous location?
Locations where fire or explosion hazards exist due to flammable liquids, gases, or combustible dust, such as chemical plants, refineries, and mining operations.
Can I request samples for testing?
Yes, sample orders are welcome for quality testing before proceeding with bulk orders.
What is the lifespan of the LED chips?
The light source utilizes high-quality CREE LED chips with an average service life of up to 100,000 hours.
Is the lamp resistant to corrosion?
Yes, it features a WF2 anti-corrosion grade with high-voltage electrostatic spraying and stainless steel fasteners, ideal for harsh chemical environments.
What are the main certifications?
This product is certified according to ATEX, CE, RoHS, and CCC standards, ensuring safety in Zone 1 and Zone 2 hazardous areas.
Classifications
Final Product Showcase
